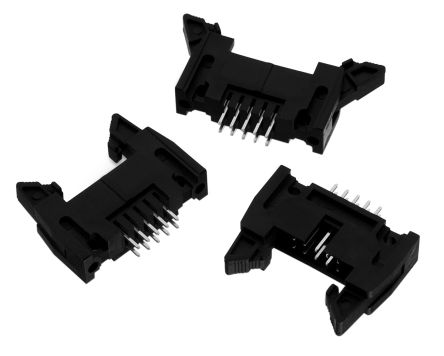

61204022021 The Wurth Elektronik 61204022021 is a WR-BHD series male box header with a 2.54mm pitch and through-hole mounting. It features 40 positions and a 3A current rating.
Mfr Part #:

61204022021

Available from 1 distributors
Mfr Name: WﾜRth
WﾜRth
The Wurth Elektronik 61204022021 is a WR-BHD series male box header with a 2.54mm pitch and through-hole mounting. It features 40 positions and a 3A current rating.
✓ Total Stock: 25,560 pcs
$ Price Range: $0.99

61204022021 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ACK ELEKTRONIK ✓
Non-Authorised Inventory information
25,560 pcs
On Request
25560 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

61204022021 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Type
Contact Material
Contact Plating
Contact Resistance
Current Rating
Fastening Type
Gender
Insulation Material
Insulation Resistance
Length (Max)
Mount
Mounting Type
Number of Contacts
Number of Pins
Number of Positions
Number of Rows
Orientation
Pitch
Row Spacing
Termination
Termination Style
View Similar Products (0)

61204022021 Description

Short technical summary and product information.

This Wurth Elektronik 61204022021 is a WR-BHD series male box header designed for reliable connections. It features a 2.54mm pitch and a through-hole mounting style, making it suitable for various PCB applications.



The header has 40 positions across 2 rows, providing ample connectivity. It is constructed with a PBT insulation material and copper contacts with gold plating, ensuring durability and good conductivity. The operating temperature ranges from -40°C to 105°C, and it has a current rating of 3A.



This component is RoHS3 compliant and has an MSL of 1 Unlimited. The termination style is solder, and it offers a latching mechanism for secure mating. The overall length of the component is 70.3mm.



Key electrical specifications include an insulation resistance of 1 GΩ and a contact resistance of 20 mΩ. The operating supply voltage is rated for 250V.

61204022021 Quick Information

Product Type: Box Header
Series: WR-BHD
Canonical Name: WR-BHD 2.54mm Male Box Header With Lever
Subcategory: Box Header

61204022021 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

61204022021 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

61204022021 Features

  • WR-BHD series male box header.
  • 40 positions across 2 rows.
  • 2.54mm pitch and row spacing.
  • Through-hole mounting with solder termination.
  • Rated for 3A current and 250V supply voltage.

61204022021 Applications

  • Ideal for PCB interconnects.
  • Suitable for power distribution.
  • Used in general electronics.
  • Provides secure latching connections.

61204022021 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the pitch of the Wurth Elektronik 61204022021 box header?

The pitch of the 61204022021 box header is 2.54 mm.

What is the operating temperature range for this component?

The operating temperature range for this component is -40 °C to 105 °C.

What is the current rating of the 61204022021?

The current rating of the 61204022021 is 3 A.

How many positions does this box header have?

This box header has 40 positions.

What type of mounting does the 61204022021 use?

The 61204022021 uses through-hole mounting.

Is the Wurth Elektronik 61204022021 RoHS compliant?

Yes, the 61204022021 is RoHS3 Compliant.
