| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,422 pcs
|
5422 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Material Flammability Rating | |
| Mating Cycles | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating | |
| Withstanding Voltage | |
| Working Voltage |

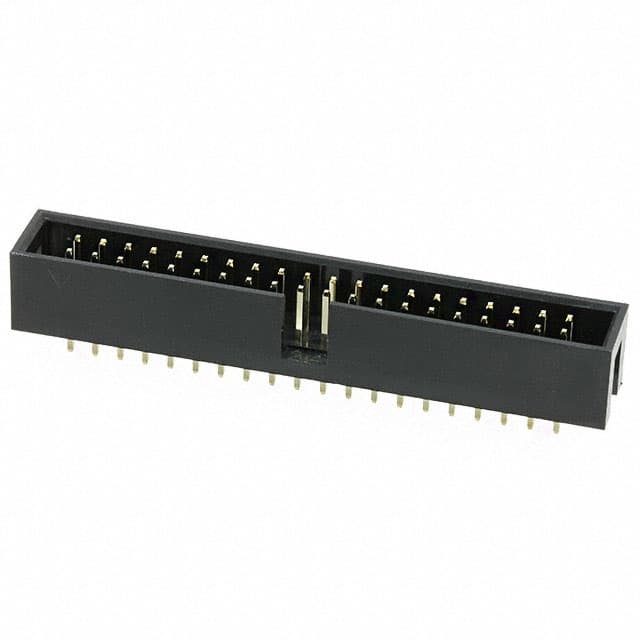

The Würth Elektronik 61204021621 is a WR-BHD series male box header designed for board-to-cable/wire applications. It features 40 positions arranged in two rows with a 2.54mm pitch and row spacing, and a shrouded 4-wall design with a keying slot for secure mating. The header uses through hole solder termination and a push-pull fastening mechanism.
Electrical ratings include a current rating of 3A maximum and a working voltage of 250V AC, with a withstanding voltage of 500V AC for 1 minute. Contact resistance is 20 mΩ maximum, and insulation resistance is 1000 MΩ minimum. The operating temperature range is -40°C to +105°C.
The insulator is made of black PBT with a UL94 V-0 flammability rating. Contacts are copper alloy with gold plating. The header is RoHS, REACH, and Halogen Free compliant, and UL approved (E323964).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.15 | $1.15 |
| 10+ | $1.10 | $1.10 |
| 80+ | $0.97 | $0.97 |
| 160+ | $0.84 | $0.84 |
| 320+ | $0.70 | $0.70 |
| 640+ | $0.63 | $0.63 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 40 positions arranged in 2 rows.
The current rating is 3A maximum.
The operating temperature range is -40°C to +105°C.
It uses through hole mounting with solder termination.
Yes, it is RoHS compliant (2011/65/EU & 2015/863).
The insulator is made of PBT with a UL94 V-0 flammability rating.
