| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
672 pcs
|
672 pcs | On Request | 12 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

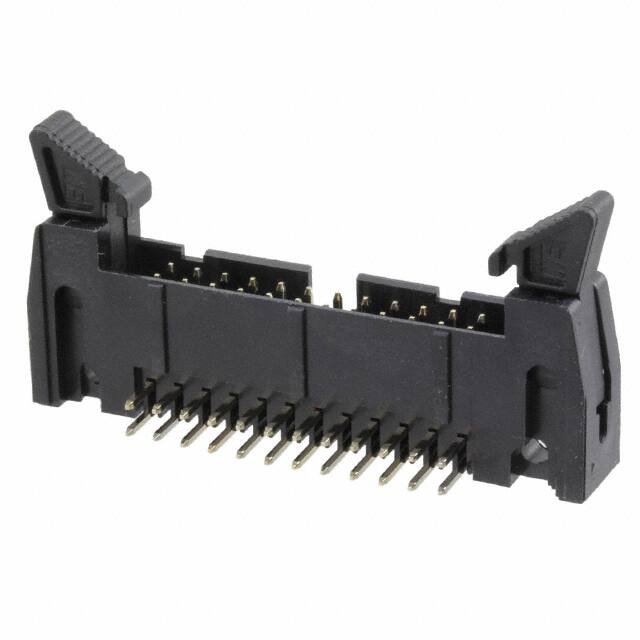

The Würth Elektronik 61202422121 is a 24-position, 2-row, 2.54mm pitch male pin header designed for board-to-cable/wire applications. It features a right-angle, through-hole mounting style with solder termination. The connector is fully shrouded with a 4-wall design and includes short latch lock/eject hooks for secure mating.
Electrical ratings include a current rating of 3A and a voltage rating of 250V AC. The insulator resistance is greater than 1000 MΩ, with a dielectric withstanding voltage of 500 VAC and a maximum contact resistance of 20 mΩ. The operating temperature range is -40°C to 125°C.
The insulator is made of black PBT with a UL94 V-0 flammability rating. Contacts are copper alloy with gold plating. The connector is RoHS compliant and lead-free. Packaging is in trays.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.58 | $2.58 |
| 10+ | $2.48 | $2.48 |
| 50+ | $2.18 | $2.18 |
| 112+ | $1.88 | $1.88 |
| 224+ | $1.58 | $1.58 |
| 448+ | $1.41 | $1.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm.
The current rating is 3A.
The voltage rating is 250V AC.
Through Hole, Right Angle.
24 positions, all loaded.
-40°C to 125°C.
Yes, it is RoHS compliant and lead-free.
