| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

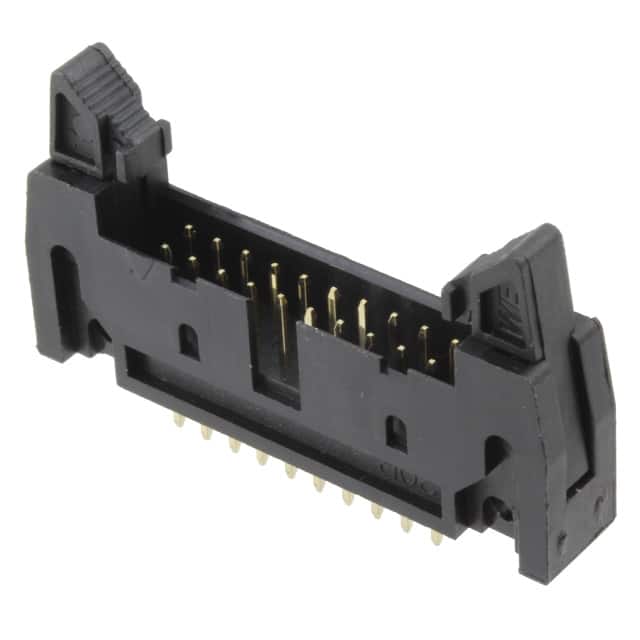

The Würth Elektronik 61202022021 is a 20-position, 2-row shrouded male pin header designed for board-to-cable/wire applications.
It features a 2.54mm pitch and row spacing, with square gold plated copper alloy contacts for reliable performance. The header has a short latch lock and eject hook fastening system, along with a keying slot for correct orientation. The insulator is made of black PBT (UL94 V-0) with a height of 17.00mm.
This component is rated for 3A current and 250VAC operating voltage, with an operating temperature range from -40°C to +125°C. It offers a dielectric withstanding voltage of 500 VAC and a maximum contact resistance of 20 mOhm. The header is RoHS and lead-free compliant, suitable for JEDEC lead-free wave soldering.
Packaging is in tray format. The mounting type is through hole with solder termination.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.57 | $2.57 |
| 10+ | $2.46 | $2.46 |
| 50+ | $2.28 | $2.28 |
| 100+ | $2.04 | $2.04 |
| 500+ | $1.80 | $1.80 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 20 positions in a 2-row configuration, with all positions loaded.
The pitch is 2.54mm (0.100 inches) with a 2.54mm row spacing.
The current rating is 3A and the voltage rating is 250VAC.
It uses through-hole mounting with solder termination.
Yes, it has a shrouded 4-wall design with latch lock/eject hooks for secure mating.
