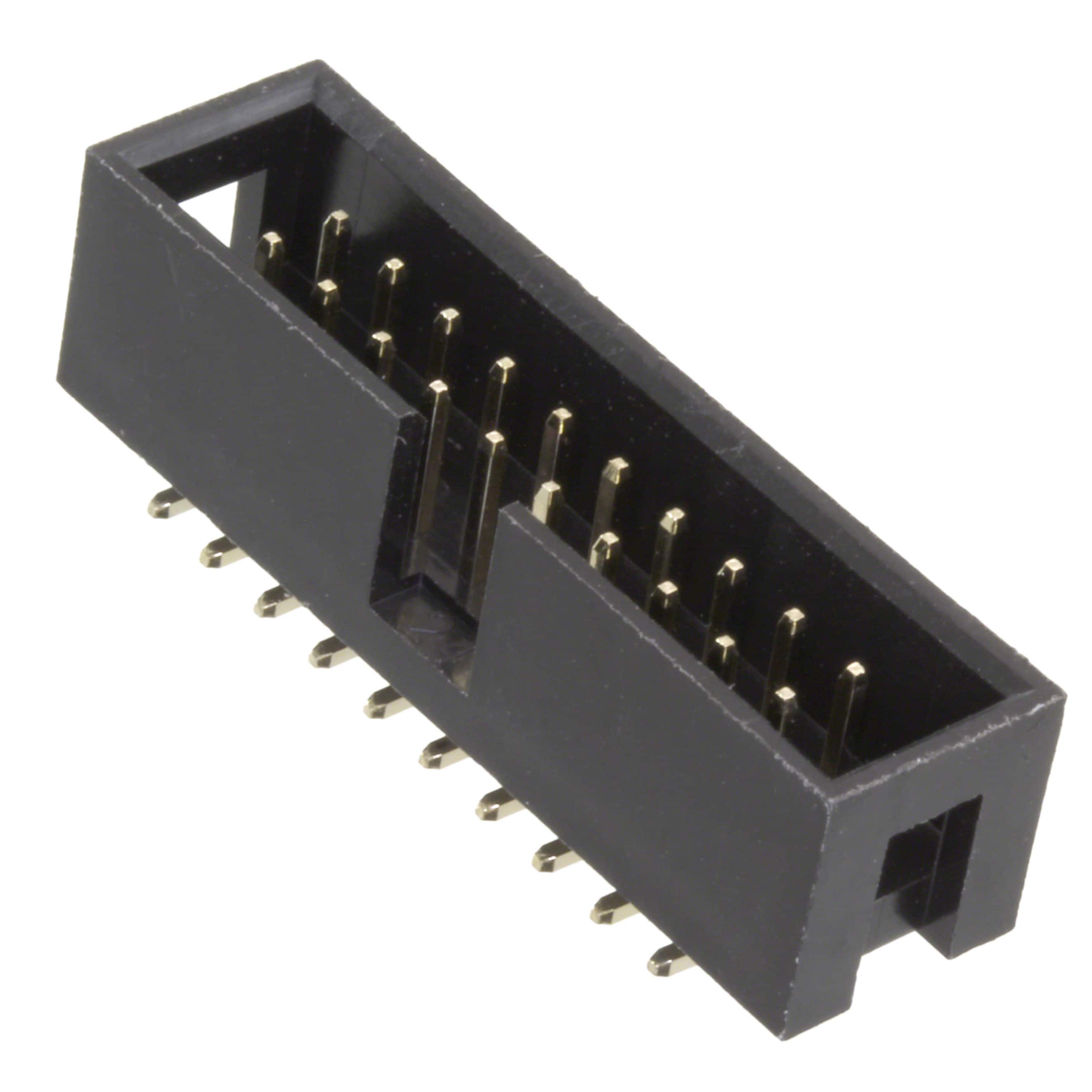

61202020621 Würth Elektronik WR-BHD 2.54mm male SMT box header with 20 positions in 2 rows. Shrouded 4-wall design, gold-plated copper alloy contacts, rated for 3A and 250V.
Mfr Part #:

61202020621

Available from 2 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik WR-BHD 2.54mm male SMT box header with 20 positions in 2 rows. Shrouded 4-wall design, gold-plated copper alloy contacts, rated for 3A and 250V.
✓ Total Stock: 47 pcs

61202020621 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
36 pcs
On Request
36 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
11 pcs
On Request
11 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

61202020621 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Resistance
Contact Shape
Contact Type
Current Rating (Amps)
Dielectric Withstanding Voltage
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Termination
Termination Style
Voltage Rating
View Similar Products (0)

61202020621 Description

Short technical summary and product information.

The Würth Elektronik 61202020621 is a WR-BHD series 2.54mm pitch male SMT box header designed for board-to-cable/wire applications. It features a shrouded 4-wall housing in black polyamide (PA6T/Nylon 6T) with a UL94 V-0 flammability rating. The connector has 20 positions arranged in 2 rows with a row spacing of 2.54mm.



Electrical ratings include a current rating of 3A maximum and a working voltage of 250VAC. The insulation resistance exceeds 5000 MΩ, dielectric withstanding voltage is 1000 VAC/min, and contact resistance is 20 mΩ maximum. The operating temperature range is -40°C to 125°C.



The contacts are made of copper alloy with gold plating, square shape, and a contact length of 5.08mm. The connector is surface mount with solder termination and is packaged in a tube. It is RoHS compliant and lead-free, with a JEDEC lead-free reflow soldering process recommended.

61202020621 Quick Information

Product Type: Header, Male Pins
Series: WR-BHD
Canonical Name: Würth Elektronik WR-BHD 2.54mm Male SMT Box Header, 20 Positions, 2 Rows, Shrouded
Subcategory: Shrouded Box Header

61202020621 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

61202020621 Features

  • 20 positions in 2 rows at 2.54mm pitch.
  • Shrouded 4-wall housing for pin protection.
  • Gold-plated copper alloy contacts.
  • Rated for 3A current and 250V voltage.
  • Surface mount with solder termination.

61202020621 Applications

  • Board-to-cable/wire interconnection in general electronics.
  • Industrial control and automation equipment.
  • Consumer electronics and peripheral devices.
  • Test and measurement instrumentation.

61202020621 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the 61202020621 header?

The pitch is 2.54mm (0.100").

How many positions does this connector have?

It has 20 positions arranged in 2 rows.

What is the current rating of the 61202020621?

The current rating is 3A maximum.

What is the voltage rating?

The working voltage is 250VAC.

What mounting type does this header use?

It is a surface mount (SMT) component with solder termination.

Is the 61202020621 RoHS compliant?

Yes, it is RoHS compliant and lead-free.

What is the operating temperature range?

The operating temperature range is -40°C to 125°C.
