| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24,000 pcs
|
24000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Overall Length | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Wire Gauge |

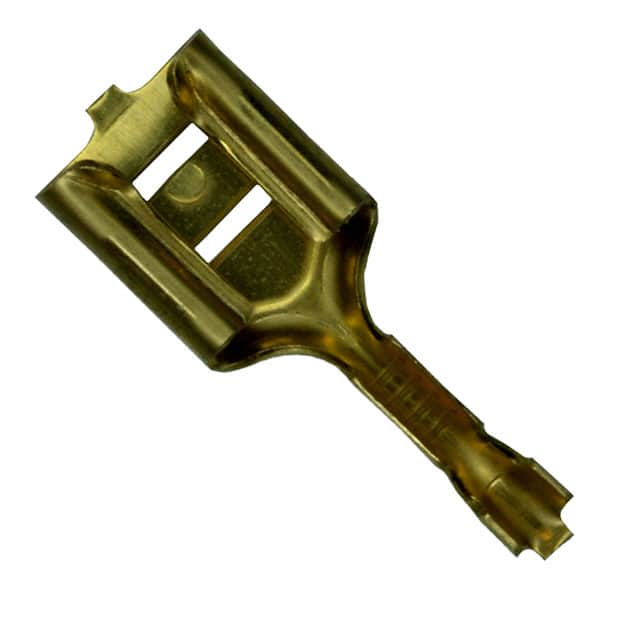

The 61202-1 is a non-insulated female quick disconnect terminal (receptacle) manufactured by TE Connectivity. It is designed for 22-26 AWG wire and features a 0.250" (6.35mm) tab width with a tab thickness of 0.032" (0.81mm) and tab length of 0.305" (7.75mm). The overall length of the terminal is 19.18mm (0.755").
This terminal uses a crimp termination style for secure wire attachment and is made from brass contact material for good electrical conductivity. It is a non-insulated type, meaning no plastic sleeve covers the connection area, making it suitable for applications where insulation is not required or where additional insulation is applied separately.
The mounting type is free hanging (in-line), allowing it to be used in wire-to-wire or wire-to-board connections where quick mating and unmating is desired. The female receptacle mates with standard 0.250" male quick disconnect tabs.
Typical applications include automotive wiring harnesses, appliance electrical connections, and industrial control systems where reliable and repeatable connections are needed. The part is available in tape and reel packaging (DigiKey part numbers A27620TR-ND and A27620CT-ND) for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
| 10+ | $0.17 | $0.17 |
| 25+ | $0.16 | $0.16 |
| 50+ | $0.15 | $0.15 |
| 100+ | $0.14 | $0.14 |
| 250+ | $0.14 | $0.14 |
| 500+ | $0.13 | $0.13 |
| 1,000+ | $0.12 | $0.12 |
| 2,500+ | $0.12 | $0.12 |
| 12,000+ | $0.10 | $0.10 |
| 24,000+ | $0.10 | $0.10 |
| 36,000+ | $0.09 | $0.09 |
| 60,000+ | $0.09 | $0.09 |
| 84,000+ | $0.09 | $0.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
22-26 AWG.
0.250" (6.35mm).
Crimp.
No, it is non-insulated.
Brass.
Female.
Free Hanging (In-Line).
