| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 3 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Features | |
| Halogen Free | |
| Insulation Resistance | |
| Insulator Flammability Rating | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mating Cycles | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Rated Current | |
| Row Spacing | |
| SVHC Present | |
| Termination Style | |
| Wire Gauge | |
| Wire Type | |
| Withstanding Voltage | |
| Working Voltage |

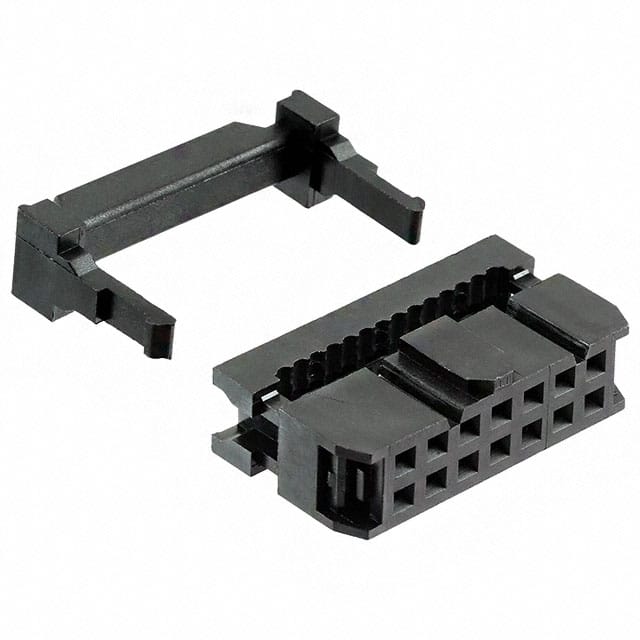

The Würth Elektronik 61201423021 is a 14-position female IDC receptacle from the WR-BHD series, designed for 28 AWG ribbon cable. It features 2 rows with 2.54mm pitch and row spacing, providing a compact and reliable connection for internal wiring.
Electrical ratings include a maximum current of 1A and voltage of 250V AC, with contact resistance of 20mΩ max and insulation resistance of 1000MΩ min. The operating temperature range is -40°C to +105°C, and the connector is rated for 30 mating cycles.
Mechanically, the connector mounts free hanging (in-line) and utilizes IDC termination. It includes feed through, polarizing key, and strain relief features. The insulator is black PBT with UL94 V-0 flammability rating, and contacts are stamped with selective gold plating over copper alloy.
This connector is suitable for general electronic equipment where internal ribbon cable connections are required. It is not authorized for use in safety-critical applications without specific agreement.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.63 | $1.63 |
| 10+ | $1.57 | $1.57 |
| 50+ | $1.38 | $1.38 |
| 72+ | $1.19 | $1.19 |
| 144+ | $1.00 | $1.00 |
| 288+ | $0.90 | $0.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 positions.
2.54 mm pitch.
1 A maximum.
250 V AC.
Free hanging (in-line).
28 AWG ribbon cable.
-40 to +105 °C.
