| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
170 pcs
|
170 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
134 pcs
|
134 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 3 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Contact Style | |
| Contact Type | |
| Current Rating | |
| Features | |
| Flammability Rating | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mating Cycles | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Packaging Type | |
| Pin to Pin Distance | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Termination Style | |
| UL | |
| Ul File Number | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Type | |
| Withstanding Voltage |

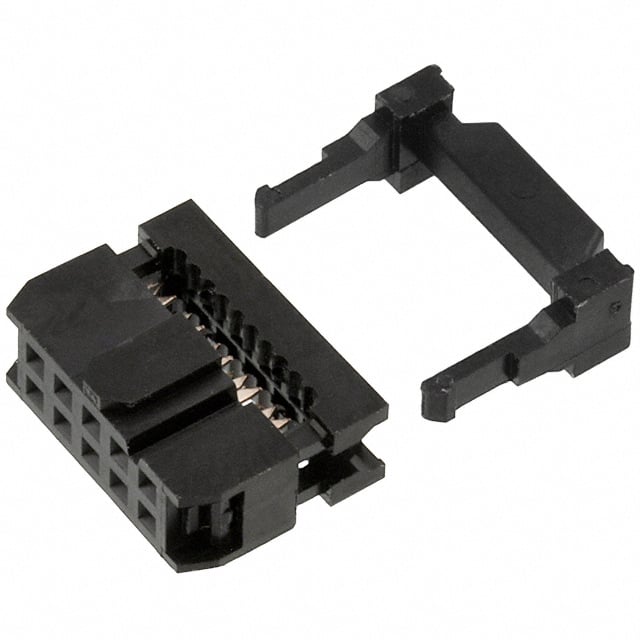

The Würth Elektronik 61201023021 is a 10-position IDC receptacle connector from the WR-BHD series, designed for 28 AWG ribbon cable. It features a 2.54mm pitch and 2.54mm row spacing, with two rows of female socket contacts. The contacts are made of copper alloy with selective gold plating, rated for 30 mating cycles. The black PBT insulator carries a UL94 V-0 flammability rating. This connector is rated for 1 A current and 250 V AC voltage, with a contact resistance of 20 mΩ max and insulation resistance of 1000 MΩ min. It includes feed through, polarizing key, and strain relief features. The operating temperature range is -40°C to +105°C. Packaging is tray.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.46 | $0.46 |
| 10+ | $0.45 | $0.45 |
| 50+ | $0.41 | $0.41 |
| 100+ | $0.38 | $0.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions in 2 rows.
2.54 mm (0.100").
1 A per contact.
250 V AC.
Free hanging (in-line) with IDC termination.
28 AWG ribbon cable.
-40°C to +105°C.
