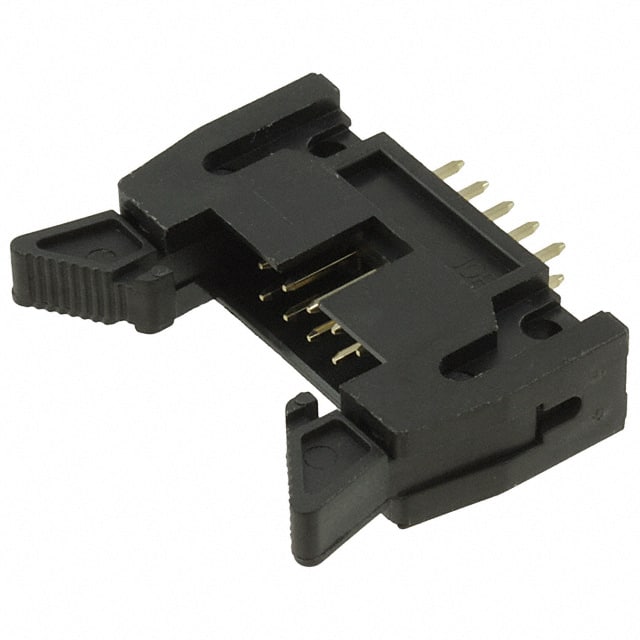

61201022021 10-position, 2.54mm pitch male pin header with shrouded 4-wall design. Through hole mounting with solder termination and gold-plated contacts.
Mfr Part #:

61201022021

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
10-position, 2.54mm pitch male pin header with shrouded 4-wall design. Through hole mounting with solder termination and gold-plated contacts.
✓ Total Stock: 2 pcs
$ Price Range: $0.69 - $0.96

61201022021 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

61201022021 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Resistance
Contact Shape
Contact Type
Current Rating (Amps)
Dielectric Withstanding Voltage
Fastening Type
Features
Halogen Free
Industrial Grade
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Medical Grade
Military Grade
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Termination
Voltage Rating
View Similar Products (0)

61201022021 Description

Short technical summary and product information.

This 10-position, 2-row header from Würth Elektronik features a 2.54mm pitch and a shrouded 4-wall design with short latch lock/eject hooks for secure board-to-cable/wire connections. The contacts are made of copper alloy with gold plating, rated for 3A current and 250VAC. The insulator is black PBT with UL94 V-0 flammability rating, operating from -40°C to 125°C. Keying slot prevents misalignment. Through hole mounting with solder termination. RoHS compliant and certified under E323964.

61201022021 Quick Information

Product Type: Header, Male Pins
Series: WR-BHD
Canonical Name: 10 Position 2.54mm Pitch Through Hole Header, Male Pins, Shrouded
Subcategory: Male Pins

61201022021 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

61201022021 Estimated Pricing

Qty Low High
1+ $0.96 $0.96
10+ $0.94 $0.94
50+ $0.87 $0.87
100+ $0.78 $0.78
312+ $0.69 $0.69

Estimated market price range - modelled values for guidance only, not live distributor offers.

61201022021 Features

  • 10-position, 2-row configuration with 2.54mm pitch.
  • Shrouded 4-wall design with latch lock.
  • Gold-plated copper alloy contacts for reliability.
  • Rated for 3A current and 250VAC.
  • UL94 V-0 flammability rated PBT insulator.

61201022021 Applications

  • Used in board-to-cable/wire connections.
  • Suitable for industrial control systems.
  • Ideal for applications requiring secure latching.
  • Works in harsh environments with wide temperature range.

61201022021 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

10 positions, all loaded, in 2 rows.

What is the pitch of this header?

2.54mm (0.100") pitch.

What is the current rating?

3A maximum.

What is the voltage rating?

250VAC working voltage.

What is the mounting type?

Through hole mounting with solder termination.

What is the operating temperature range?

-40°C to 125°C.

What is the contact material and finish?

Copper alloy contacts with gold plating.
