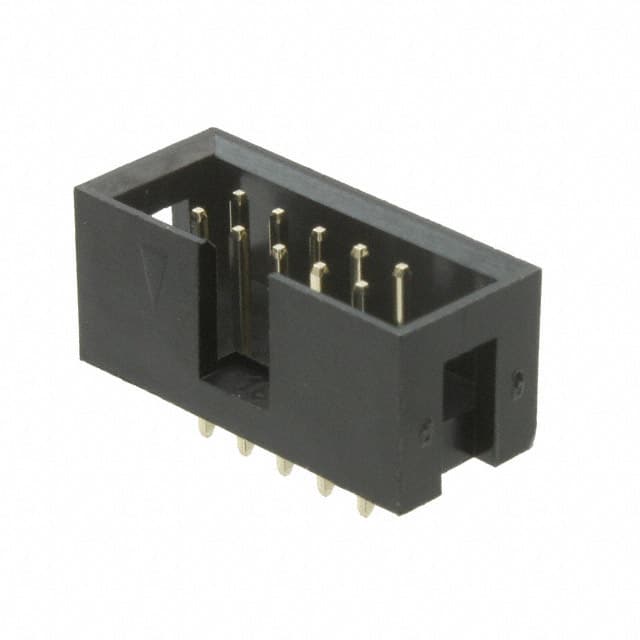

61201021621 Connector Header, 10 positions, 2.54mm pitch, through hole, shrouded, gold plated, rated 3A/250V.
Mfr Part #:

61201021621

Available from 4 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Connector Header, 10 positions, 2.54mm pitch, through hole, shrouded, gold plated, rated 3A/250V.
✓ Total Stock: 200 pcs
$ Price Range: $0.38 - $0.48

61201021621 Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

61201021621 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Resistance
Contact Shape
Contact Type
Current Rating (Amps)
Durability
Fastening Type
Features
Halogen Free
Industrial Grade
Insulation Color
Insulation Height
Insulation Material
Insulation Resistance
Lead Spacing
Lead Style
Material Flammability Rating
Medical Grade
Military Grade
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Termination
Voltage Rating
Withstanding Voltage
View Similar Products (0)

61201021621 Description

Short technical summary and product information.

The Würth Elektronik 61201021621 is a 10-position male pin header from the WR-BHD series. It features a 2.54mm pitch and 2.54mm row spacing in a dual-row configuration. The connector is fully shrouded with a 4-wall design and push-pull fastening. Contacts are made of copper alloy with gold finish, rated for 3A current and 250V voltage. The insulator is black PBT with UL94 V-0 flammability rating. Operating temperature range is -40°C to 125°C. This through-hole solder termination connector is suitable for board-to-cable/wire applications. Contact resistance is 20mΩ max, insulation resistance 1000MΩ min, and withstanding voltage 500V AC. Durability is 30 mating cycles. The connector includes a keying slot for alignment.

61201021621 Quick Information

Product Type: Header, Male Pins
Series: WR-BHD
Canonical Name: Header, Male Pins, 10 Position, 2.54mm Pitch, Through Hole, Shrouded
Subcategory: Male Pins

61201021621 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Compliant

61201021621 Estimated Pricing

Qty Low High
1+ $0.48 $0.48
10+ $0.47 $0.47
50+ $0.43 $0.43
100+ $0.39 $0.39
260+ $0.38 $0.38

Estimated market price range - modelled values for guidance only, not live distributor offers.

61201021621 Features

  • 10-position dual-row shrouded header.
  • 2.54mm pitch and row spacing.
  • Gold-plated copper alloy contacts.
  • Rated for 3A at 250V DC.
  • UL94 V-0 rated PBT insulator.

61201021621 Applications

  • Board-to-cable wiring in industrial equipment.
  • Internal power/signal connections in control units.
  • Prototyping and test fixtures with 2.54mm headers.
  • Data communication interfaces requiring shielded connectors.

61201021621 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

10 positions.

What is the pitch?

2.54mm (0.100").

What is the current rating?

3A.

What is the voltage rating?

250V.

What is the mounting type?

Through hole.

What is the operating temperature range?

-40°C to 125°C.

What is the contact finish?

Gold.
