| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Durability | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating | |
| Withstanding Voltage |

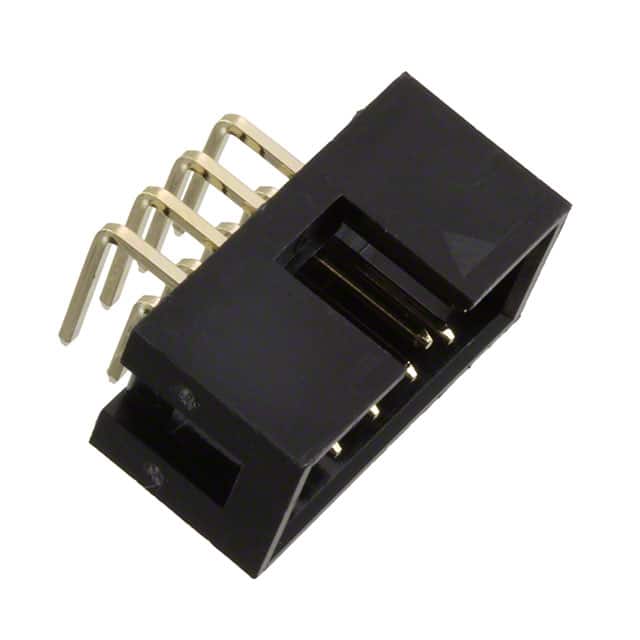

The Würth Elektronik 61200821721 is a WR-BHD series male angled box header designed for board-to-cable/wire applications. It features 8 positions arranged in 2 rows with a 2.54mm pitch and row spacing. The connector is fully shrouded with a 4-wall design and includes a keying slot for polarization.
Rated for 3A current and 250V AC voltage, the header uses square male pins made from copper alloy with a gold finish. The insulator is black polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating. The operating temperature range is -40°C to +105°C.
Mechanical specifications include a right-angle through-hole mounting style with solder termination, a durability of 30 mating cycles, and a contact resistance of 20 mΩ maximum. The insulation resistance is 1000 MΩ minimum, and the withstanding voltage is 500V AC for 1 minute.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.10 | $1.10 |
| 10+ | $1.06 | $1.06 |
| 50+ | $0.93 | $0.93 |
| 100+ | $0.81 | $0.81 |
| 300+ | $0.67 | $0.67 |
| 600+ | $0.60 | $0.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This header has 8 positions, all loaded, arranged in 2 rows.
The pitch is 2.54mm, with the same row spacing of 2.54mm.
The current rating is 3A, voltage rating is 250V AC, contact resistance is 20 mΩ max, and insulation resistance is 1000 MΩ min.
It uses through-hole, right angle mounting with solder termination.
The operating temperature range is -40°C to +105°C.
The insulator is made of polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating.
The connector is rated for 30 mating cycles.
