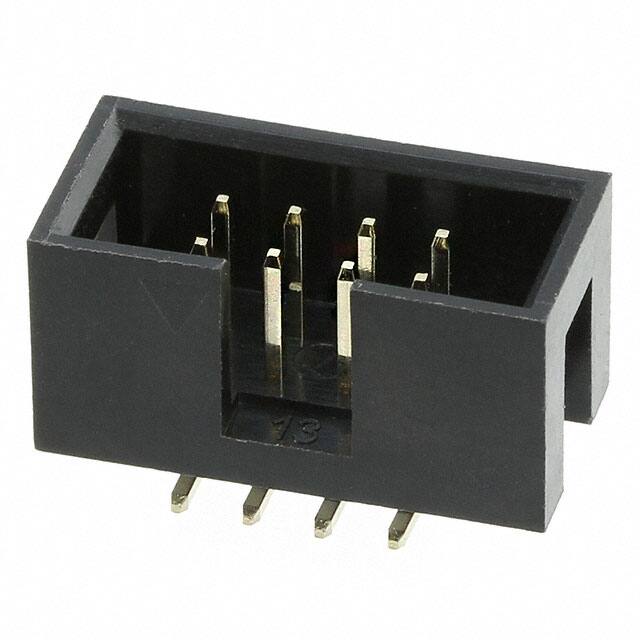

61200820621 The 61200820621 is an 8-position 2.54mm pitch surface mount shrouded box header from Würth Elektronik, part of the WR-BHD series. It features gold-plated copper alloy pins, a black nylon insulator, and supports board-to-cable applications.
Mfr Part #:

61200820621

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
The 61200820621 is an 8-position 2.54mm pitch surface mount shrouded box header from Würth Elektronik, part of the WR-BHD series. It features gold-plated copper alloy pins, a black nylon insulator, and supports board-to-cable applications.
✓ Total Stock: 3,573 pcs

61200820621 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
3,573 pcs
On Request
3573 pcs On Request 20 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

61200820621 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Resistance
Contact Shape
Contact Type
Current Rating (Amps)
Dielectric Withstanding Voltage
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

61200820621 Description

Short technical summary and product information.

The 61200820621 is a surface mount male pin header from Würth Elektronik's WR-BHD series, designed for board-to-cable/wire applications. It has 8 positions arranged in 2 rows with a 2.54mm (0.100") pitch and row spacing.



The header features a shrouded 4-wall design with a push-pull fastening mechanism and includes a keying slot for polarization. The black insulator is molded from polyamide (PA6T/Nylon 6T) with a UL94 V-0 flammability rating.



Electrical specifications include a 3A current rating, 250V voltage rating, contact resistance of 20 mΩ max, and dielectric withstanding voltage of 1000 VAC. The contact finish is gold over copper alloy, and the part is rated for an operating temperature range of -40°C to +125°C.



The component is surface mount compatible with a solder termination style, making it suitable for automated assembly processes. It is RoHS compliant and lead-free, and is packaged in a tube for handling.

61200820621 Quick Information

Product Type: Header
Series: 61200820621
Canonical Name: 8-Position 2.54mm Pitch Male Pin SMT Box Header
Subcategory: Headers, Male Pins

61200820621 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

61200820621 Features

  • 8 positions in 2 rows at 2.54mm pitch.
  • Surface mount solder termination.
  • Rated for 3A and 250VAC operation.
  • Gold plated copper alloy contacts.
  • Shrouded 4-wall housing with keying slot.

61200820621 Applications

  • Board-to-cable wire harness connections.
  • General purpose signal interconnects.
  • Industrial control and automation systems.
  • Low-power peripheral interconnect applications.

61200820621 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of this header?

The pitch is 2.54mm (0.100").

How many positions does the 61200820621 have?

It has 8 positions with all positions loaded in 2 rows.

What is the current rating of this connector?

The current rating is 3A maximum.

What is the voltage rating?

The voltage rating is 250VAC.

What mounting type does this header use?

It uses surface mount (SMT) with solder termination.

Is the 61200820621 RoHS compliant?

Yes, it is RoHS compliant and lead-free.

What is the operating temperature range?

The operating temperature range is -40°C to +125°C.
