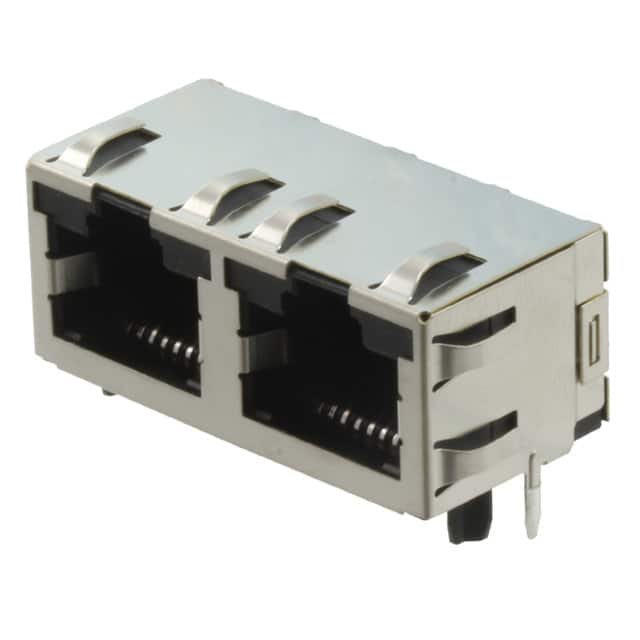

6116522-1 TE Connectivity 6116522-1 is a 2 port RJ45 modular jack with 8p8c contacts, right angle orientation, through hole mounting, and shielded with EMI finger.
Mfr Part #:

6116522-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 6116522-1 is a 2 port RJ45 modular jack with 8p8c contacts, right angle orientation, through hole mounting, and shielded with EMI finger.
✓ Total Stock: 1,008 pcs
$ Price Range: $5.44 - $8.86

6116522-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
1,008 pcs
On Request
1008 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

6116522-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Features
LED Color
Lead Style
Mounting Type
Number of Ports
Number of Positions
Number of Rows
Orientation
Ratings
Shielding
Tab Direction
Termination
Termination Style
View Similar Products (0)

6116522-1 Description

Short technical summary and product information.

The TE Connectivity 6116522-1 is a modular connector jack designed for Ethernet applications. It features 2 ports with 8p8c (RJ45) contact arrangement in a single row. The connector is oriented at a 90° right angle for horizontal PCB mounting and uses through hole solder termination for reliable mechanical attachment.



The jack is fully shielded with an EMI finger to reduce electromagnetic interference, making it suitable for data communication environments. Contacts are made of phosphor bronze with a gold finish for corrosion resistance and reliable signal integrity. The connector includes a board guide feature for accurate alignment during assembly.



Rated for Cat5 performance, this connector is appropriate for 10/100Base-T Ethernet networks. It does not contain integrated LEDs. The housing is designed for standard RJ45 plug insertion with an upward tab direction.

6116522-1 Quick Information

Product Type: Modular Connector Jack
Canonical Name: TE Connectivity 6116522-1 Modular Jack, RJ45, 8p8c, 2 Port, Right Angle, Shielded
Subcategory: RJ45 Connector

6116522-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 2
REACH Status: REACH Unaffected

6116522-1 Estimated Pricing

Qty Low High
1+ $8.86 $8.86
10+ $7.53 $7.53
25+ $7.06 $7.06
72+ $6.55 $6.55
144+ $6.24 $6.24
288+ $5.94 $5.94
504+ $5.71 $5.71
1,008+ $5.44 $5.44

Estimated market price range - modelled values for guidance only, not live distributor offers.

6116522-1 Features

  • 2 port RJ45 modular jack connector.
  • 8p8c contact arrangement, single row.
  • Right angle 90° orientation for PCB.
  • Shielded with EMI finger protection.
  • Gold plated phosphor bronze contacts.

6116522-1 Applications

  • 10/100Base-T Ethernet network ports.
  • Data communication equipment backplanes.
  • Industrial control panel connections.
  • Telecommunications patch panels.

6116522-1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the connector type and configuration?

This is a modular jack with 8p8c (RJ45, Ethernet) contact arrangement, 2 ports, and 1 row.

What is the mounting and termination style?

Through hole mounting with solder termination.

Is this connector shielded?

Yes, it is shielded and includes an EMI finger.

What is the orientation of the connector?

90° angle (right angle).

What contact material and finish are used?

Phosphor bronze contacts with gold finish.

What is the performance rating?

Cat5 rated.

Does this connector have integrated LEDs?

No, it does not contain an LED.
