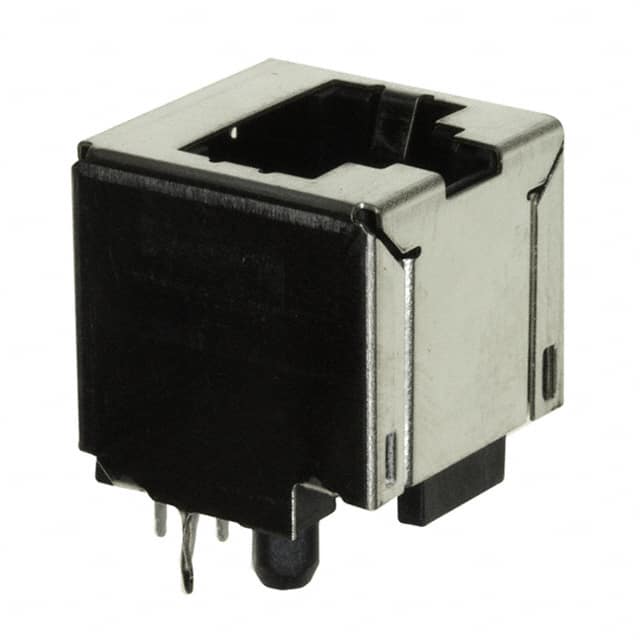

6116202-1 TE Connectivity 6116202-1 is a shielded modular jack with 8p8c (RJ45) configuration, 1 port, vertical orientation, through hole press-fit termination, and Cat5 rating.
Mfr Part #:

6116202-1

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 6116202-1 is a shielded modular jack with 8p8c (RJ45) configuration, 1 port, vertical orientation, through hole press-fit termination, and Cat5 rating.
✓ Total Stock: 1,182 pcs
$ Price Range: $3.39 - $5.90

6116202-1 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
1,160 pcs
On Request
1160 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
22 pcs
On Request
22 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

6116202-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Features
LED Color
Lead Style
Mounting Type
Number of Ports
Number of Positions
Number of Rows
Orientation
Ratings
Shielding
Tab Direction
Termination
View Similar Products (0)

6116202-1 Description

Short technical summary and product information.

The TE Connectivity 6116202-1 is a single-port modular jack designed for RJ45 Ethernet applications. It features an 8p8c (8 position, 8 contact) configuration with a vertical orientation and shielded construction for electromagnetic interference protection.



The connector uses through hole press-fit termination, providing a reliable solderless connection to the PCB. The contact material is phosphor bronze with a gold finish, ensuring good conductivity and corrosion resistance. A board guide feature aids in alignment during assembly.



This jack is rated for Cat5 applications, making it suitable for 100BASE-TX Ethernet networks. The user-selectable tab direction offers flexibility in cable routing. The part does not include integrated LEDs.

6116202-1 Quick Information

Product Type: Modular Connector Jack
Canonical Name: TE Connectivity 6116202-1 Modular Jack, 8p8c (RJ45), 1 Port, Vertical, Shielded, Through Hole, Press-Fit
Subcategory: RJ45 Jack

6116202-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

6116202-1 Estimated Pricing

Qty Low High
1+ $5.90 $5.90
10+ $5.01 $5.01
29+ $4.65 $4.65
58+ $4.42 $4.42
116+ $4.21 $4.21
261+ $3.98 $3.98
522+ $3.79 $3.79
1,015+ $3.62 $3.62
2,523+ $3.39 $3.39

Estimated market price range - modelled values for guidance only, not live distributor offers.

6116202-1 Features

  • Shielded RJ45 jack with 8p8c contacts.
  • Vertical orientation with through hole press-fit termination.
  • Gold-plated phosphor bronze contacts for reliability.
  • Cat5 rated for 100BASE-TX Ethernet networks.
  • Board guide feature for easy PCB alignment.

6116202-1 Applications

  • Used in Ethernet network interface cards.
  • Suitable for 100BASE-TX and 10BASE-T applications.
  • Ideal for industrial control and automation equipment.
  • Applied in telecommunications and data communication devices.

6116202-1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the connector type and configuration of the 6116202-1?

It is a modular jack with 8p8c (RJ45, Ethernet) configuration, 1 port, and 1 row.

What is the mounting type and termination method?

Through hole mounting with press-fit termination.

Is the connector shielded?

Yes, it is shielded.

What is the orientation and tab direction?

Vertical orientation with user-selectable tab direction.

What contact material and finish are used?

Phosphor bronze contact material with gold finish.

What is the performance rating of this jack?

Cat5 rated.

Does this connector include LEDs?

No, it does not contain an LED.
