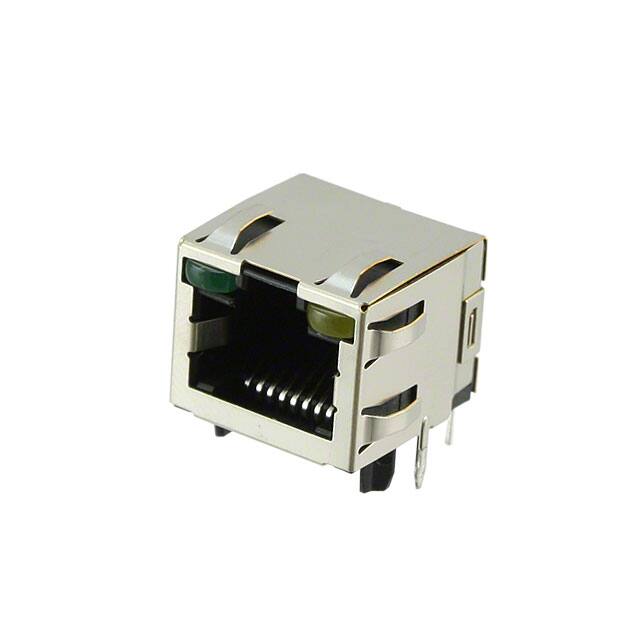

6116173-4 This TE Connectivity 6116173-4 is a shielded 8P8C (RJ45) modular jack with a right angle orientation and through hole mounting. It features a single port, gold contacts, and green/yellow LED indicators.
Mfr Part #:

6116173-4

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
This TE Connectivity 6116173-4 is a shielded 8P8C (RJ45) modular jack with a right angle orientation and through hole mounting. It features a single port, gold contacts, and green/yellow LED indicators.
✓ Total Stock: 1,714 pcs
$ Price Range: $2.61 - $3.46

6116173-4 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tokyo Device ✓
Non-Authorised Inventory information
1,714 pcs
On Request
1714 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

6116173-4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Features
LED Color
Lead Style
Mounting Type
Number of Ports
Number of Positions
Number of Rows
Orientation
Ratings
Shielding
Tab Direction
Tape & Reel
Termination
Termination Style
View Similar Products (0)

6116173-4 Description

Short technical summary and product information.

The TE Connectivity 6116173-4 is a modular connector jack designed for Ethernet applications. It features an 8P8C (RJ45) configuration with a single port.



This jack has a right angle orientation and through hole mounting with solder termination. It is shielded with an EMI finger for electromagnetic interference protection and includes a board guide for alignment. The tab direction is up.



Contacts are made of phosphor bronze with a gold finish for reliable connectivity. Integrated green and yellow LEDs provide status indication. The jack is rated for Cat5 applications.



Suitable for networking equipment such as routers, switches, and other data communication devices requiring a shielded RJ45 jack.

6116173-4 Quick Information

Product Type: Modular Connector Jack
Canonical Name: Modular Jack, 8P8C (RJ45), 1 Port, Right Angle, Through Hole, Shielded
Subcategory: RJ45 Jack

6116173-4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

6116173-4 Estimated Pricing

Qty Low High
1+ $3.46 $3.46
50+ $3.21 $3.21
100+ $3.00 $3.00
252+ $2.91 $2.91
504+ $2.75 $2.75
1,008+ $2.71 $2.71
2,520+ $2.61 $2.61

Estimated market price range - modelled values for guidance only, not live distributor offers.

6116173-4 Features

  • Shielded with EMI finger for noise protection.
  • Right angle orientation for space-saving design.
  • Gold-plated phosphor bronze contacts ensure reliability.
  • Integrated green and yellow LED indicators.
  • Cat5 rated for 100 MHz Ethernet applications.

6116173-4 Applications

  • Ideal for 10/100Base-T Ethernet ports.
  • Used in routers, switches, and hubs.
  • Suitable for industrial networking equipment.
  • Perfect for PCB-mounted network interfaces.

6116173-4 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

8P8C (RJ45, Ethernet)

What is the mounting type?

Through hole

What is the orientation?

90° angle (right)

Is the connector shielded?

Yes, shielded with EMI finger

What LED colors are available?

Green - Yellow

What is the contact finish?

Gold

What category rating does this jack support?

Cat5
