| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60,000 pcs
|
60000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Contact Termination | |
| Contact Thickness | |
| Contact Type | |
| Failure Rate | |
| Insulation Diameter (Max) | |
| Lead Style | |
| Mounting Type | |
| Packaging Type | |
| Pin or Socket | |
| Tape & Reel | |
| Termination Style | |
| Wire Gauge | |
| Wire Range |

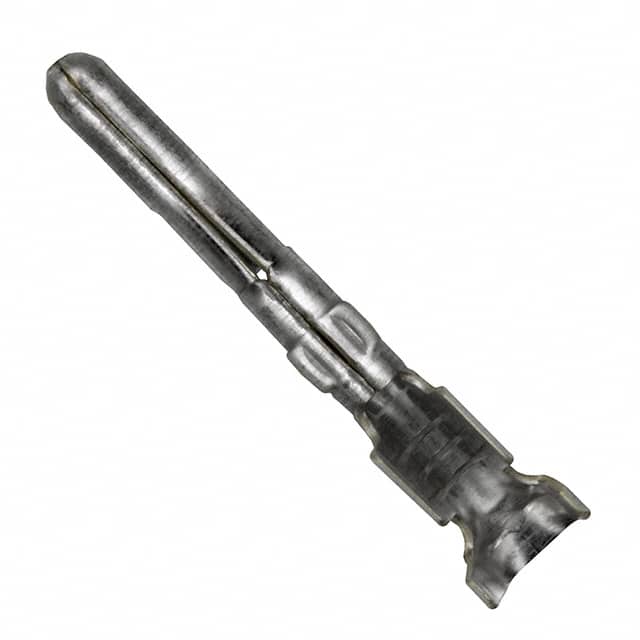

The 61118-1 is a crimp pin contact from TE Connectivity’s Commercial MATE-N-LOK series. It is designed for wire sizes 14–20 AWG (0.5–2 mm²) and features a tin-plated finish over a brass base material. The contact uses a crimp termination style for secure wire connections. It accommodates a maximum insulation diameter of 3.30 mm and has a contact thickness of 0.33 mm. Packaging options include Tape & Reel and Cut Tape. This contact is suitable for use in rectangular connector housings within the Commercial MATE-N-LOK family. RoHS and REACH compliance is indicated but unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.14 | $0.14 |
| 10+ | $0.12 | $0.12 |
| 25+ | $0.11 | $0.11 |
| 50+ | $0.10 | $0.10 |
| 100+ | $0.10 | $0.10 |
| 250+ | $0.09 | $0.09 |
| 500+ | $0.09 | $0.09 |
| 1,000+ | $0.08 | $0.08 |
| 2,500+ | $0.08 | $0.08 |
| 5,000+ | $0.08 | $0.08 |
| 10,000+ | $0.07 | $0.07 |
| 15,000+ | $0.07 | $0.07 |
| 25,000+ | $0.07 | $0.07 |
| 35,000+ | $0.07 | $0.07 |
| 50,000+ | $0.06 | $0.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact supports wire sizes 14–20 AWG, corresponding to 0.5–2 mm².
The termination style is crimp.
The contact has a tin finish and is made of brass.
The maximum insulation diameter is 3.30 mm.
It is part of the Commercial MATE-N-LOK series.
The contact is available in Tape & Reel and Cut Tape packaging.
