| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Forming | |
| Contact Length | |
| Contact Material | |
| Contact Termination | |
| Contact Type | |
| Insulation Diameter | |
| Lead Style | |
| Mating Series | |
| Pin or Socket | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Underplate Thickness | |
| Wire Gauge |

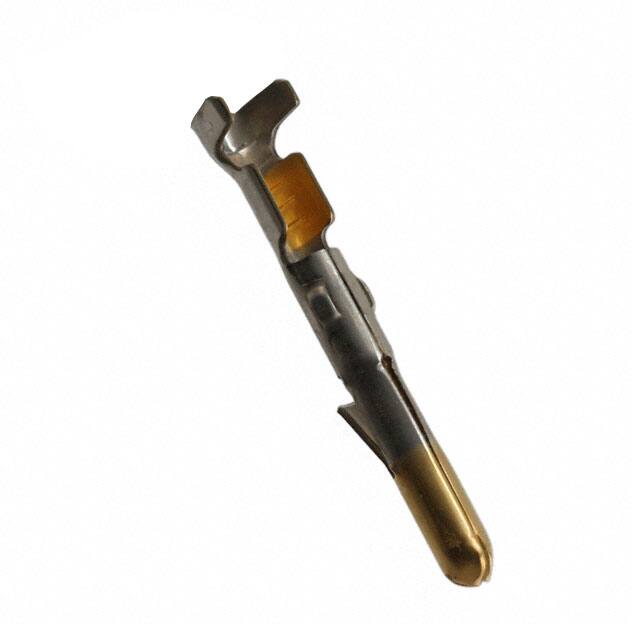

The TE Connectivity 61116-5 is a stamped brass pin contact designed for use in Commercial MATE-N-LOK connector systems. It accepts wire gauges from 18 to 24 AWG and features a crimp termination style for secure and reliable connections.
The contact is plated with a minimum of 0.76 µm gold in the mating area and inside the wire barrel, over a 1.27 µm minimum nickel underplate. This finish ensures good conductivity and corrosion resistance. The maximum insulation diameter accepted is 2.54 mm.
This part is part of a family of contacts including brass and phosphor bronze variants with different plating options. The 61116-5 is specifically the brass version with gold tip plating. It is suitable for use with Mini applicators for automated wire processing.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.07 | $2.07 |
| 10+ | $1.76 | $1.76 |
| 25+ | $1.65 | $1.65 |
| 50+ | $1.57 | $1.57 |
| 100+ | $1.50 | $1.50 |
| 250+ | $1.40 | $1.40 |
| 500+ | $1.34 | $1.34 |
| 1,000+ | $1.27 | $1.27 |
| 2,500+ | $1.26 | $1.26 |
| 8,000+ | $1.10 | $1.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 61116-5 accepts 18-24 AWG wire (0.2-0.9 mm²).
The termination style is crimp.
The contact has gold plating (0.76 µm minimum) in the mating area and inside the wire barrel, over a nickel underplate (1.27 µm minimum).
The contact material is brass.
The maximum insulation diameter accepted is 2.54 mm (0.100 in).
This contact is for the Commercial MATE-N-LOK series.
