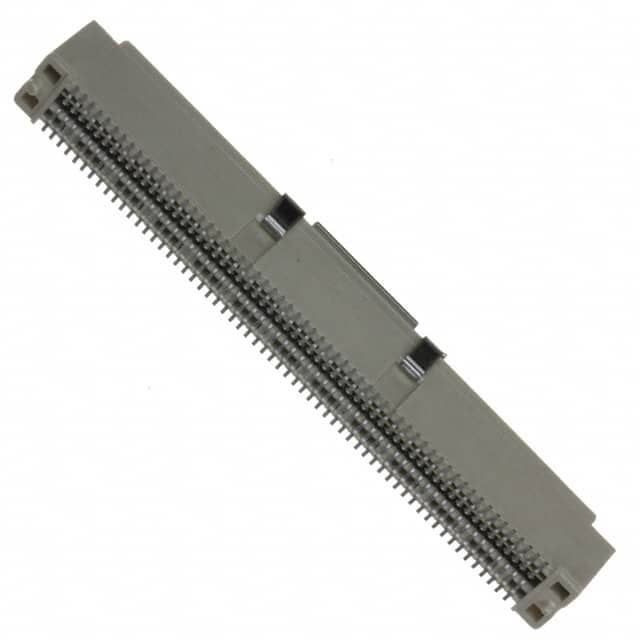

61083-124402LF Connector plug with 120 positions, center strip contacts, 0.80mm pitch, surface mount, gold contact finish.
Mfr Part #:

61083-124402LF

Available from 1 distributors
Mfr Name: Amphenol ICC
Amphenol ICC
Connector plug with 120 positions, center strip contacts, 0.80mm pitch, surface mount, gold contact finish.
✓ Total Stock: 159 pcs
$ Price Range: $6.41 - $9.78

61083-124402LF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
159 pcs
On Request
159 pcs On Request 1 On Request On Request 1207+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

61083-124402LF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Features
Height Above Board
Lead Spacing
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
SVHC Present
Tape & Reel
View Similar Products (0)

61083-124402LF Description

Short technical summary and product information.

The 61083-124402LF is a 120-position plug connector from Amphenol ICC, featuring center strip contacts in a 2-row arrangement. Designed for surface mount attachment, this connector uses a 0.80mm (0.031") pitch and stands 0.303" (7.70mm) above the board. It supports mated stacking heights of 8mm, 12mm, and 16mm, making it suitable for mezzanine (board-to-board) applications. The gold contact finish with 8.00µin (0.203µm) thickness ensures reliable signal integrity. A built-in board guide aids in alignment during assembly.

61083-124402LF Quick Information

Product Type: Board-to-Board Connector
Series: BERGSTAK
Canonical Name: Amphenol ICC 61083-124402LF Connector Plug 120 Position Surface Mount
Subcategory: Board-to-Board Array Connector

61083-124402LF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

61083-124402LF Estimated Pricing

Qty Low High
1+ $9.78 $9.78
10+ $8.32 $8.32
25+ $7.80 $7.80
50+ $7.43 $7.43
100+ $7.07 $7.07
250+ $6.41 $6.41
400+ $6.41 $6.41

Estimated market price range - modelled values for guidance only, not live distributor offers.

61083-124402LF Features

  • Connector plug with 120 positions, 2 rows.
  • 0.80mm pitch for high-density interconnection.
  • Surface mount mounting for automated assembly.
  • Gold contact finish (8.00µin) for reliability.
  • Supports 8mm, 12mm, or 16mm mated stacking heights.

61083-124402LF Applications

  • Board-to-board mezzanine connections in compact electronics.
  • High-density signal routing in industrial equipment.
  • Data communication modules requiring reliable interconnects.

61083-124402LF FAQs

5 frequently asked questions generated from this part’s specifications.
What is the pitch of the 61083-124402LF?

The pitch is 0.80mm (0.031").

How many positions does this connector have?

This connector has 120 positions arranged in 2 rows.

What is the mounting type of the 61083-124402LF?

It is a surface mount connector.

What mated stacking heights are supported?

Supported mated stacking heights are 8mm, 12mm, and 16mm.

What is the contact finish on this connector?

The contact finish is gold with a thickness of 8.00µin (0.203µm).
