| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,950 pcs
|
4950 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

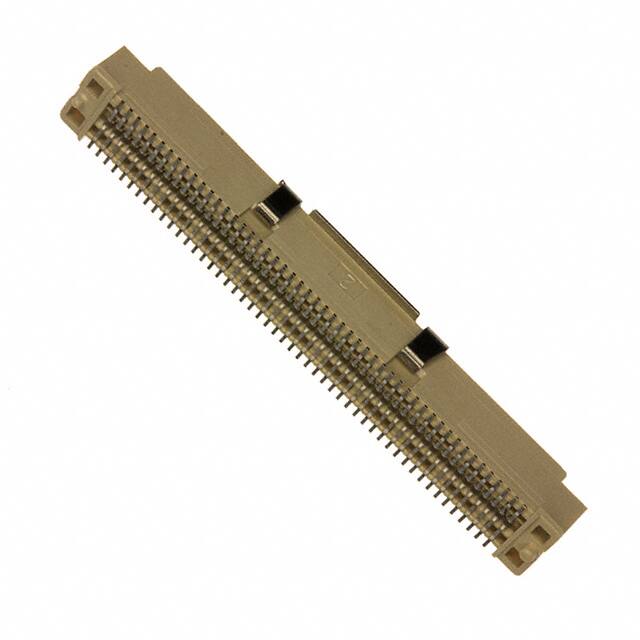

This is a 100-position plug connector with center strip contacts, part of Amphenol ICC's board-to-board connector family. It features a 0.80mm pitch and 2 rows of contacts, designed for surface mount soldering.
The connector has a gold contact finish with 8.00µin thickness, ensuring reliable electrical performance. It includes a board guide feature for accurate alignment during assembly. The height above board is 5.70mm, and it supports mated stacking heights of 6mm, 10mm, and 14mm.
This connector is suitable for mezzanine board-to-board applications where space is limited. The surface mount design allows for efficient automated assembly. The gold contacts provide corrosion resistance and low contact resistance.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.02 | $8.02 |
| 10+ | $6.82 | $6.82 |
| 25+ | $6.39 | $6.39 |
| 50+ | $6.08 | $6.08 |
| 100+ | $5.79 | $5.79 |
| 250+ | $5.52 | $5.52 |
| 550+ | $5.14 | $5.14 |
| 1,100+ | $4.89 | $4.89 |
| 1,650+ | $4.75 | $4.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
100 positions in 2 rows.
0.80mm (0.031 inches).
Surface mount.
Gold with 8.00µin thickness.
6mm, 10mm, and 14mm.
Yes, it includes a board guide.
