| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
650 pcs
|
650 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

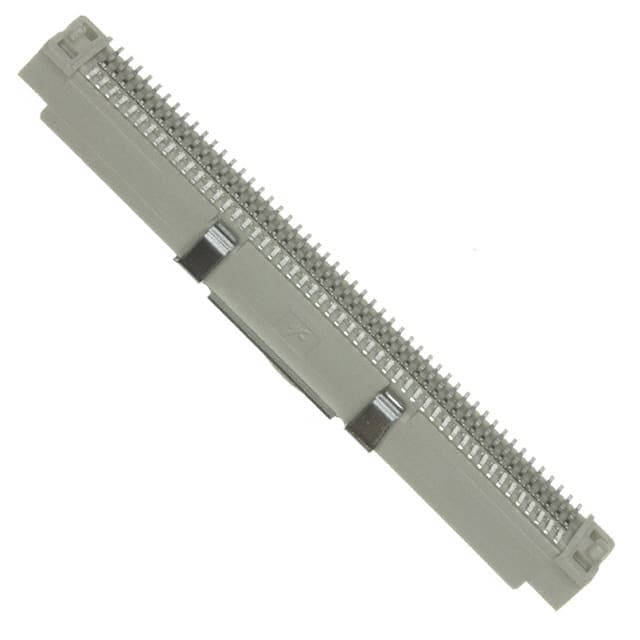

The Amphenol ICC 61083-101402LF is a 100 position, 2 row, 0.80mm pitch surface mount plug connector featuring center strip contacts. It is designed for board-to-board mezzanine applications with mated stacking heights of 5mm, 9mm, and 13mm.
The connector has gold plated contacts with a thickness of 8.00µin (0.203µm) and includes a board guide feature for reliable alignment during assembly. The height above board is 0.185" (4.70mm).
This plug is suitable for use in compact electronic devices requiring high density interconnections. The surface mount design supports automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.48 | $7.48 |
| 10+ | $6.36 | $6.36 |
| 25+ | $5.96 | $5.96 |
| 50+ | $5.68 | $5.68 |
| 100+ | $5.41 | $5.41 |
| 250+ | $5.12 | $5.12 |
| 650+ | $4.74 | $4.74 |
| 1,300+ | $4.51 | $4.51 |
| 1,950+ | $4.38 | $4.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
100 positions in 2 rows.
0.80mm.
Surface Mount.
Gold with 8.00µin thickness.
5mm, 9mm, and 13mm.
Yes, it includes a board guide.
