| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
900 pcs
|
900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
291 pcs
|
291 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

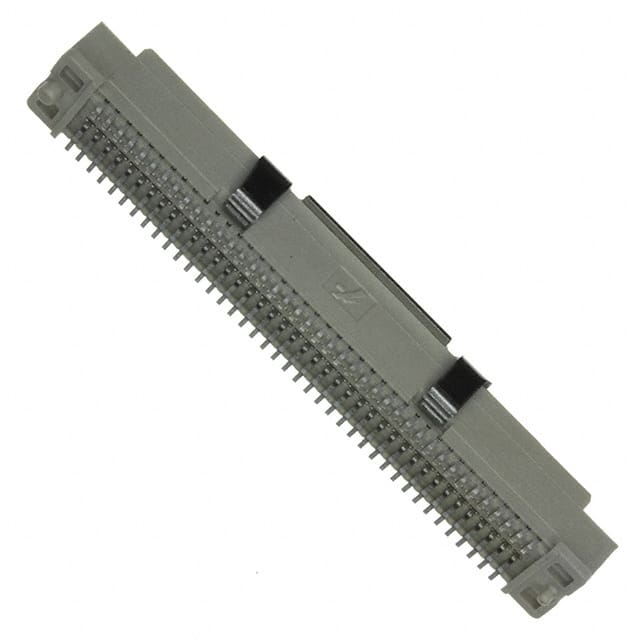

The Amphenol ICC 61083-081402LF is an 80-position plug connector with center strip contacts, designed for mezzanine (board-to-board) stacking applications. It features a 0.80mm pitch and a 2-row configuration, supporting mated stacking heights of 5mm, 9mm, and 13mm. The connector is surface mount (SMD) with a height above board of 0.185 inches (4.70mm). Contacts are finished with 8.00 microinches (0.203 micrometers) of gold for reliable conductivity. A board guide feature aids in alignment during assembly.
This connector is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited floor life). It is suitable for applications requiring a high-density, low-profile interconnect solution. The center strip contact design provides a robust connection for parallel board stacking.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.97 | $6.97 |
| 10+ | $5.93 | $5.93 |
| 25+ | $5.55 | $5.55 |
| 50+ | $5.29 | $5.29 |
| 100+ | $5.04 | $5.04 |
| 250+ | $4.74 | $4.74 |
| 900+ | $4.31 | $4.31 |
| 1,800+ | $4.11 | $4.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has a pitch of 0.80 mm.
The 61083-081402LF has 80 positions arranged in 2 rows.
The connector is surface mount (SMD).
The connector supports mated stacking heights of 5mm, 9mm, and 13mm.
The contact finish is gold with a thickness of 8.00 microinches (0.203 micrometers).
Yes, it includes a board guide feature.
