| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

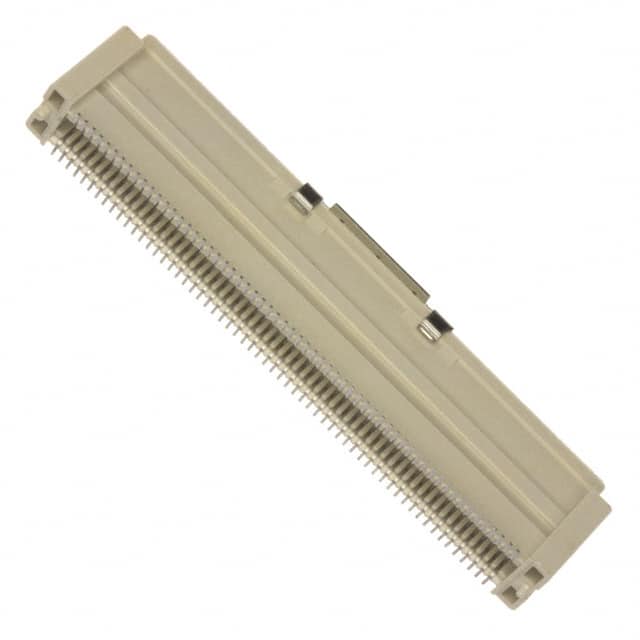

The Amphenol ICC 61082-123402LF is a 120-position receptacle connector featuring outer shroud contacts. It is designed for surface mount applications and uses a 0.80mm pitch. The connector has 2 rows of contacts and includes a board guide feature for alignment during assembly. The contacts are finished with gold plating (8.00µin / 0.203µm) for reliable conductivity and corrosion resistance. The connector has a height above board of 11.70mm and supports mated stacking heights of 13mm, 14mm, 15mm, and 16mm, making it suitable for mezzanine board-to-board interconnects.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.46 | $9.46 |
| 10+ | $8.04 | $8.04 |
| 25+ | $7.54 | $7.54 |
| 50+ | $7.18 | $7.18 |
| 100+ | $6.84 | $6.84 |
| 300+ | $6.33 | $6.33 |
| 600+ | $6.02 | $6.02 |
| 900+ | $5.85 | $5.85 |
| 1,500+ | $5.65 | $5.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
120 positions.
0.80mm (0.031").
Surface Mount.
Gold, 8.00µin (0.203µm) thickness.
13mm, 14mm, 15mm, and 16mm.
Yes, it includes a board guide.
