| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

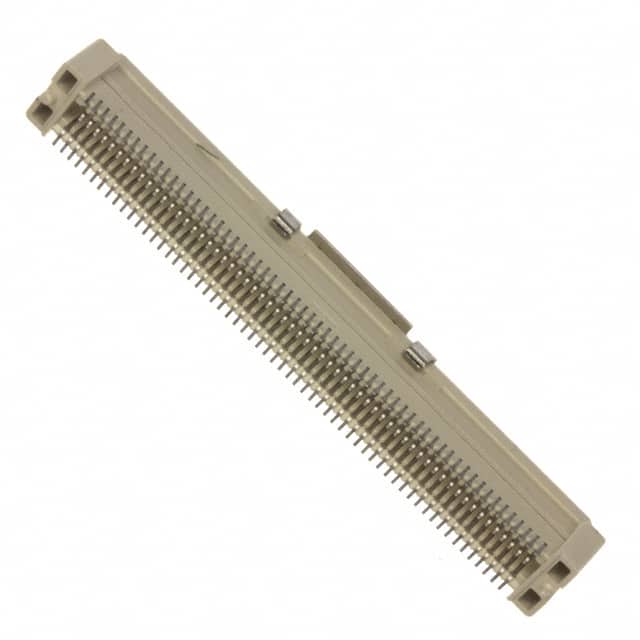

The Amphenol ICC 61082-122402LF is a 120-position receptacle connector designed for mezzanine board-to-board applications. It features two rows of outer shroud contacts with a 0.80mm pitch, enabling high-density interconnections in compact electronic assemblies.
The connector is surface mount compatible and has a height above board of 0.303" (7.70mm). It supports mated stacking heights of 9mm, 10mm, 11mm, and 12mm, providing flexibility for various PCB spacing requirements. The gold contact finish with 8µin thickness ensures reliable electrical performance and corrosion resistance.
A built-in board guide feature aids in alignment during mating, simplifying assembly. This connector is suitable for automated pick-and-place processes and is commonly used in telecommunications, networking, and industrial equipment where space is at a premium.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.73 | $9.73 |
| 10+ | $8.26 | $8.26 |
| 25+ | $7.75 | $7.75 |
| 50+ | $7.38 | $7.38 |
| 100+ | $7.02 | $7.02 |
| 400+ | $6.37 | $6.37 |
| 800+ | $6.07 | $6.07 |
| 1,200+ | $5.90 | $5.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
120 positions.
0.80mm (0.031").
Surface mount.
Gold, 8µin thickness.
9mm, 10mm, 11mm, 12mm.
Board guide.
2 rows.
