61082-102402LF
Amphenol ICC

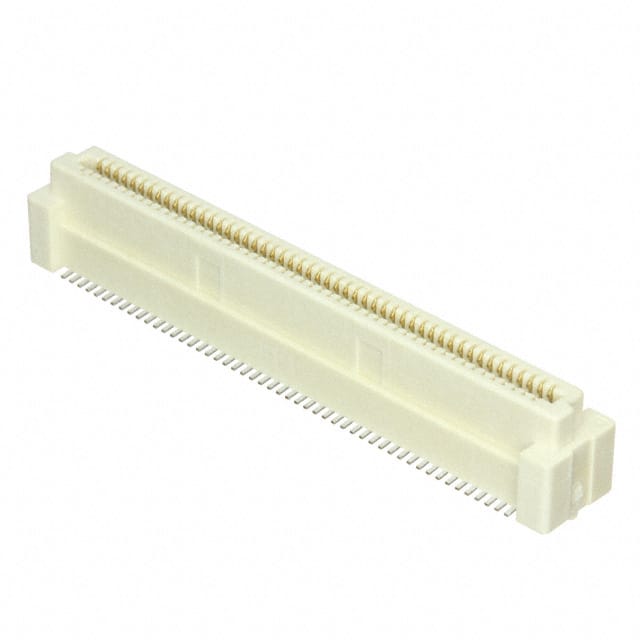

100 position receptacle connector with 0.80mm pitch and gold plated contacts. Surface mount mounting with board guide feature.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
240 pcs
|
240 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |
The Amphenol ICC 61082-102400LF is a high-density board-to-board receptacle connector featuring 100 positions arranged in 2 rows with a 0.80mm (0.031 inch) pitch. This surface mount connector is designed for mezzanine or stacking applications, with mated stacking heights ranging from 9mm to 12mm. The receptacle uses outer shroud contacts with a gold finish of 8 microinches (0.203 micrometers) for reliable signal integrity. A built-in board guide aids alignment during assembly. The connector is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited floor life). Its compact height above board of 0.303 inches (7.70mm) makes it suitable for space-constrained designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.36 | $5.36 |
| 10+ | $4.56 | $4.56 |
| 30+ | $4.22 | $4.22 |
| 50+ | $4.07 | $4.07 |
| 100+ | $3.87 | $3.87 |
| 250+ | $3.63 | $3.63 |
| 500+ | $3.46 | $3.46 |
| 1,000+ | $3.29 | $3.29 |
| 2,500+ | $3.09 | $3.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
100 positions.
0.80mm (0.031 inches).
Surface Mount.
2 rows.
Gold, 8 microinches (0.203 micrometers).
9mm, 10mm, 11mm, and 12mm.
Yes, it includes a board guide feature.
