61082-101400LF
Amphenol ICC
100-position, 0.8mm pitch surface mount receptacle with gold contacts. Designed for mezzanine board-to-board stacking heights from 5mm to 8mm.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,400 pcs
|
2400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
425 pcs
|
425 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

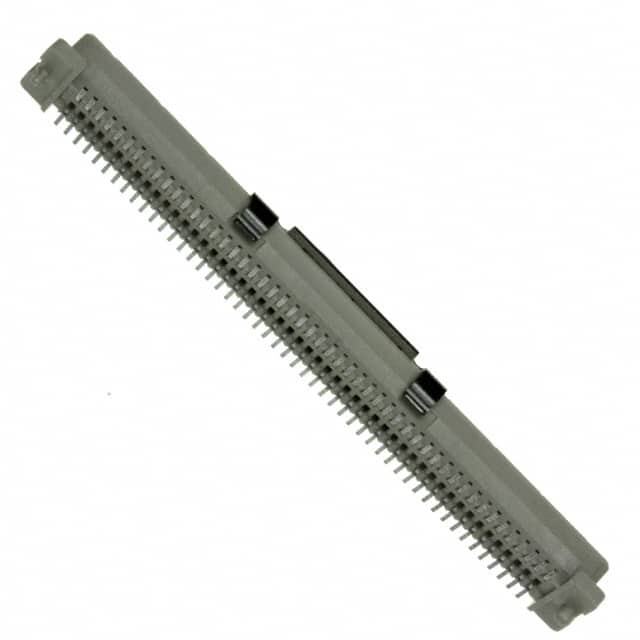

The 61082-101402LF is a 100-position receptacle connector from Amphenol ICC, featuring outer shroud contacts arranged in 2 rows with a 0.80mm pitch. This surface mount connector is designed for high-density mezzanine board-to-board applications, supporting stacking heights of 5mm, 6mm, 7mm, and 8mm. The contacts are finished with 8.00µin (0.203µm) of gold, ensuring reliable electrical performance and corrosion resistance. A built-in board guide aids in alignment during assembly. The connector is RoHS3 compliant and rated MSL 1 (unlimited). This component is suitable for compact electronic devices requiring dense interconnect solutions. Its low-profile design with a height above board of 0.146" (3.70mm) helps save space in constrained enclosures. The surface mount packaging facilitates automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.55 | $8.55 |
| 10+ | $7.27 | $7.27 |
| 25+ | $6.81 | $6.81 |
| 50+ | $6.49 | $6.49 |
| 100+ | $6.18 | $6.18 |
| 250+ | $5.92 | $5.92 |
| 800+ | $5.33 | $5.33 |
| 1,600+ | $5.08 | $5.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
100 positions arranged in 2 rows.
0.80mm (0.031").
Surface mount.
Gold with 8.00µin (0.203µm) thickness.
5mm, 6mm, 7mm, and 8mm.
Yes, it includes a board guide.
RoHS3 compliant (unverified).
