| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
386 pcs
|
386 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

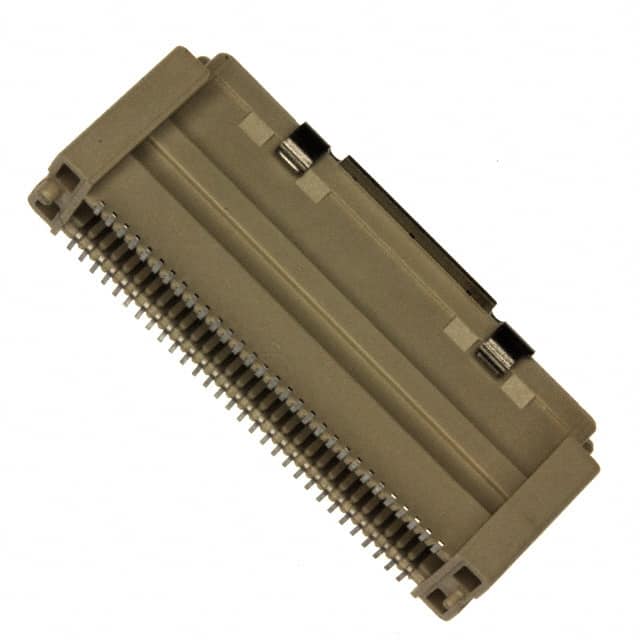

The Amphenol ICC 61082-063402LF is a 60-position, 2-row receptacle connector with outer shroud contacts designed for board-to-board and mezzanine applications. It features a 0.80mm (0.031”) pitch and is configured for Surface Mount termination, making it suitable for compact, high-density PCB designs.
The connector is rated for mated stacking heights of 13mm, 14mm, 15mm, and 16mm, providing flexibility in vertical spacing between parallel boards. The contacts are finished with gold plating (8.00µin or 0.203µm) for reliable mating and corrosion resistance. A board guide feature is included to assist alignment during assembly.
The connector is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited) for moisture sensitivity. These attributes support use in lead-free soldering processes common in commercial and industrial electronics manufacturing.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.61 | $6.61 |
| 10+ | $5.62 | $5.62 |
| 25+ | $5.27 | $5.27 |
| 50+ | $5.02 | $5.02 |
| 100+ | $4.78 | $4.78 |
| 300+ | $4.42 | $4.42 |
| 600+ | $4.21 | $4.21 |
| 900+ | $4.09 | $4.09 |
| 1,500+ | $3.95 | $3.95 |
| 2,100+ | $3.85 | $3.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 60 positions arranged in 2 rows.
The pitch is 0.80mm (0.031").
Surface Mount.
The height above board is 11.70mm (0.461").
13mm, 14mm, 15mm, and 16mm.
