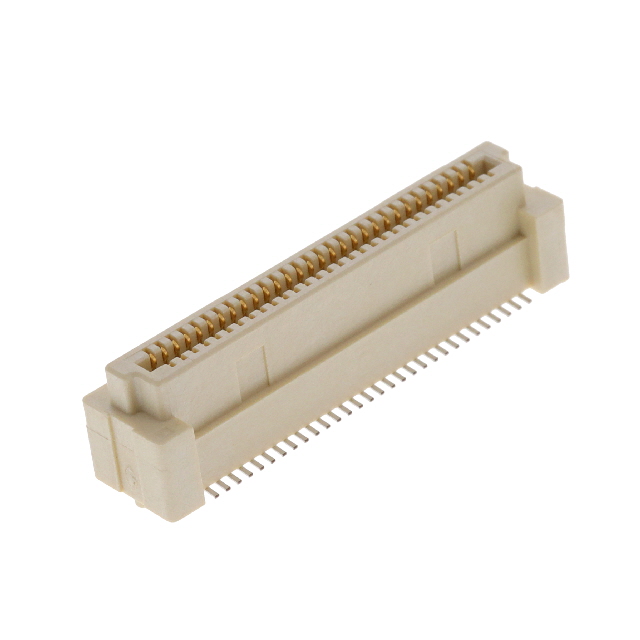

61082-062400LF 60-position, 0.8mm pitch surface mount receptacle connector with gold contacts. Supports 9mm, 10mm, 11mm, 12mm stacking heights.
Mfr Part #:

61082-062400LF

Available from 1 distributors
Mfr Name: Amphenol ICC
Amphenol ICC
60-position, 0.8mm pitch surface mount receptacle connector with gold contacts. Supports 9mm, 10mm, 11mm, 12mm stacking heights.
✓ Total Stock: 363 pcs
$ Price Range: $2.46 - $4.07

61082-062400LF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
363 pcs
On Request
363 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

61082-062400LF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Features
Height Above Board
Lead Spacing
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
Tape & Reel
View Similar Products (0)

61082-062400LF Description

Short technical summary and product information.

The 61082-062400LF is a 60-position receptacle connector from Amphenol ICC, part of the Arrays, Edge Type, Mezzanine (Board to Board) category. It features two rows of contacts with a 0.8mm pitch, surface mount termination, and gold contact finish of 8.00µin. The connector has a height above board of 7.70mm and supports mated stacking heights of 9mm, 10mm, 11mm, and 12mm, making it suitable for various board-to-board spacing requirements. A board guide feature aids in alignment during assembly. The contacts are gold-plated for reliable performance.

61082-062400LF Quick Information

Product Type: Receptacle Connector
Canonical Name: 61082-062400LF Receptacle Connector, 60 Position, 0.8mm Pitch, Surface Mount, Gold Contacts
Subcategory: Mezzanine Connector

61082-062400LF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

61082-062400LF Estimated Pricing

Qty Low High
1+ $4.07 $4.07
10+ $3.35 $3.35
25+ $3.04 $3.04
100+ $2.92 $2.92
250+ $2.75 $2.75
480+ $2.58 $2.58
960+ $2.46 $2.46

Estimated market price range - modelled values for guidance only, not live distributor offers.

61082-062400LF Features

  • 60-position, 2-row configuration.
  • 0.8mm pitch for high-density connections.
  • Gold contact finish of 8.00µin.
  • Supports multiple stacking heights up to 12mm.
  • Surface mount termination for SMD assembly.

61082-062400LF Applications

  • Ideal for mezzanine board-to-board stacking.
  • Used in high-density interconnect applications.
  • Suitable for compact electronic assemblies.
  • Common in telecom and data communication equipment.

61082-062400LF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

60 positions.

What is the pitch of this connector?

0.8mm (0.031 inches).

What is the mounting type?

Surface Mount (SMT).

What is the contact finish?

Gold, with a thickness of 8.00µin (0.203µm).

What are the supported mated stacking heights?

9mm, 10mm, 11mm, and 12mm.

What is the height above board?

7.70mm (0.303 inches).

Does this connector have any special features?

Includes a board guide feature for alignment.
