| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
800 pcs
|
800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

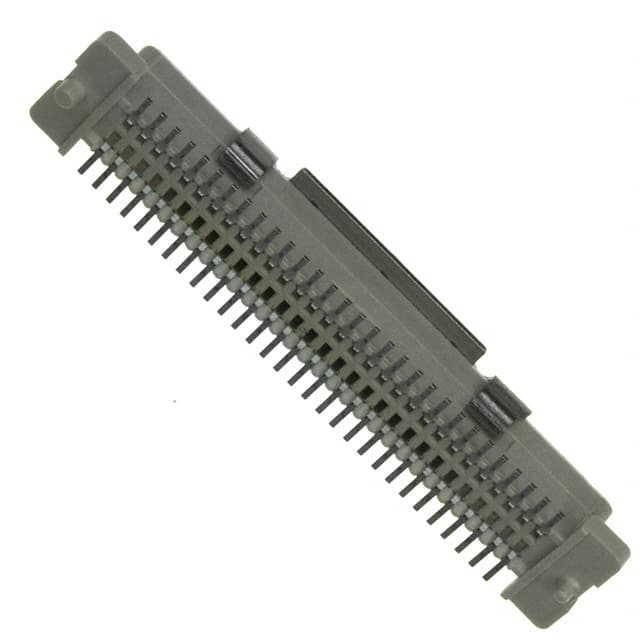

The 61082-061402LF is a 60-position receptacle connector with outer shroud contacts, designed for mezzanine (board-to-board) stacking applications. It features a 0.80mm pitch and a surface mount mounting type, making it suitable for compact, high-density designs. The connector has a gold contact finish with 8.00µin thickness, ensuring reliable electrical performance. It supports mated stacking heights of 5mm, 6mm, 7mm, and 8mm, providing flexibility in system design. The connector includes a board guide feature for alignment during assembly. With a height above board of 3.70mm, it is suitable for low-profile applications. The connector is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $6.61 | $6.61 |
| 10+ | $5.62 | $5.62 |
| 25+ | $5.27 | $5.27 |
| 50+ | $5.02 | $5.02 |
| 100+ | $4.78 | $4.78 |
| 250+ | $4.48 | $4.48 |
| 800+ | $3.67 | $3.67 |
| 1,600+ | $3.93 | $3.93 |
| 2,400+ | $3.82 | $3.82 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
60 positions.
0.80mm.
Surface mount.
Gold with 8.00µin thickness.
5mm, 6mm, 7mm, and 8mm.
Yes, it includes a board guide feature.
2 rows.
