| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
292 pcs
|
292 pcs | On Request | 1 | On Request | On Request | 2039+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

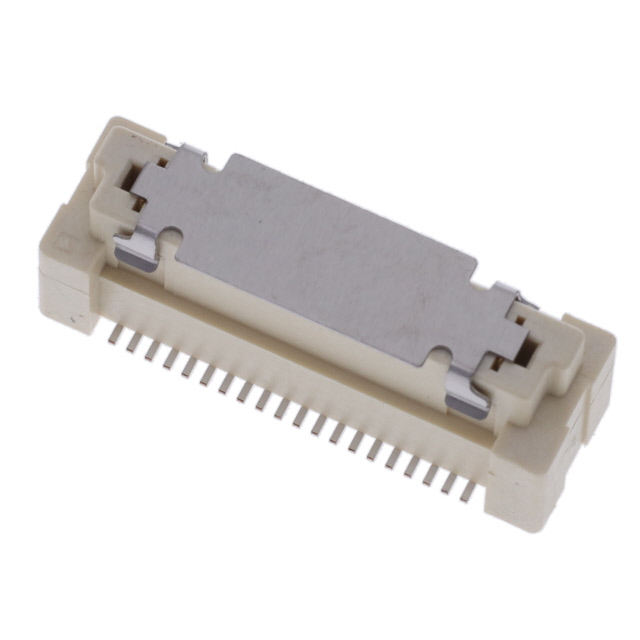

The Amphenol ICC 61082-042602LF is a 40 position receptacle connector designed for board-to-board mezzanine applications. It features a 0.80mm pitch and a 2-row configuration, making it suitable for high-density interconnections. The connector uses a surface mount mounting type and has gold contact finish with a thickness of 4.00µin.
This connector supports multiple mated stacking heights of 9mm, 10mm, 11mm, and 12mm, providing flexibility in board spacing. It includes a board guide feature to assist with alignment during assembly. The connector has a height above board of 7.70mm.
The 61082-042602LF is categorized under Arrays, Edge Type, Mezzanine (Board to Board) connectors. It is designed for use in applications requiring reliable signal transmission between parallel circuit boards.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.49 | $2.49 |
| 10+ | $2.22 | $2.22 |
| 25+ | $2.04 | $2.04 |
| 100+ | $1.97 | $1.97 |
| 250+ | $1.86 | $1.86 |
| 500+ | $1.73 | $1.73 |
| 1,000+ | $1.65 | $1.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector type is a receptacle with outer shroud contacts.
It has 40 positions arranged in 2 rows.
The pitch is 0.80mm.
It uses surface mount mounting.
The contact finish is gold with a thickness of 4.00µin.
It supports mated stacking heights of 9mm, 10mm, 11mm, and 12mm.
Yes, it includes a board guide feature.
