| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
507 pcs
|
507 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination Style |

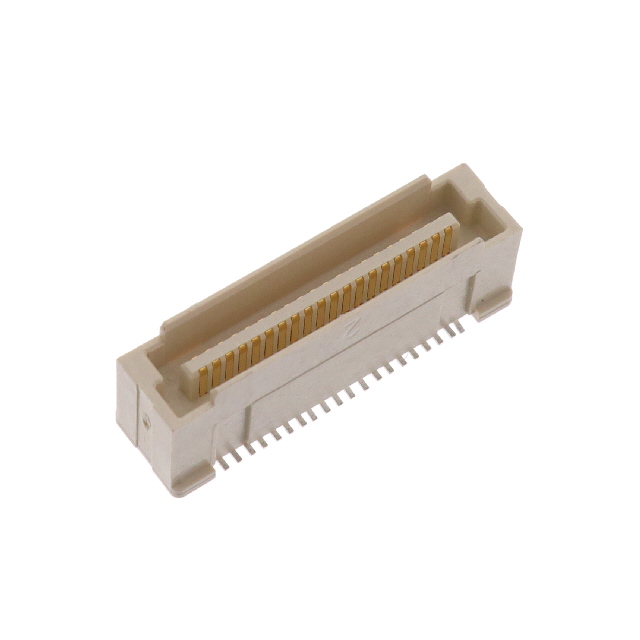

The Amphenol ICC 61082-042409LF is a 40-position, 2-row board-to-board receptacle with outer shroud contacts. It uses a 0.80mm pitch and is designed for surface mount termination, making it suitable for compact mezzanine stacking applications.
The connector has a height above board of 0.303 inches (7.70mm) and supports mated stacking heights of 9mm, 10mm, 11mm, and 12mm. Contacts are finished with 8.00µin (0.203µm) gold, providing reliable electrical performance.
A board guide feature aids in alignment during mating, simplifying assembly in dense PCB layouts. The surface mount design is compatible with standard SMD assembly processes.
This connector is categorized under Arrays, Edge Type, Mezzanine (Board to Board) and is suitable for applications requiring high-density board-to-board connections.
| Qty | Low | High |
|---|---|---|
| 2,750+ | $1.46 | $1.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 40 positions.
The pitch is 0.80mm (0.031 inches).
The mounting type is surface mount.
The contact finish is gold with a thickness of 8.00µin (0.203µm).
The supported mated stacking heights are 9mm, 10mm, 11mm, and 12mm.
