| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Storage Temperature | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

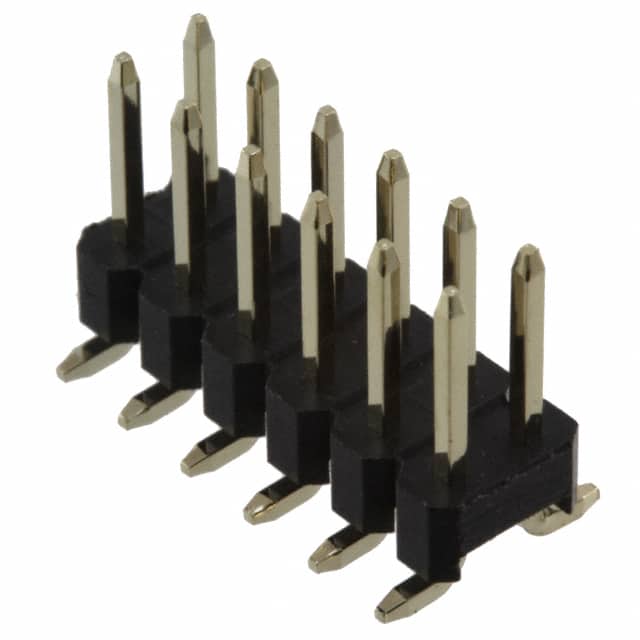

This rectangular connector from Würth Elektronik is a 12-position, 2-row, unshrouded male pin header with a 2.54mm pitch and row spacing. Designed for surface mount (SMT) soldering, it features square gold-plated copper alloy contacts for reliable connections in board-to-board or cable applications.
Electrical ratings include a current rating of 3A, voltage rating of 250V AC, contact resistance of 20 mOhm max, and insulation resistance greater than 1000 MOhm. The insulator is made from black polyamide (PA6T / Nylon 6T) with a UL94 V-0 flammability rating, supporting an operating temperature range of -40°C to +125°C.
Packaged in tape and reel with a cap, this header includes a pick and place feature for automated assembly. It is compliant with RoHS and lead-free requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.11 | $3.11 |
| 10+ | $2.64 | $2.64 |
| 25+ | $2.20 | $2.20 |
| 50+ | $1.83 | $1.83 |
| 100+ | $1.67 | $1.67 |
| 300+ | $1.59 | $1.59 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The header has 12 positions arranged in 2 rows.
The pitch is 2.54mm (0.100 inches) with the same row spacing.
The current rating is 3A and the voltage rating is 250V AC.
This is a surface mount (SMT) connector with solder termination.
The operating temperature range is -40°C to +125°C.
