| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
48 pcs
|
48 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

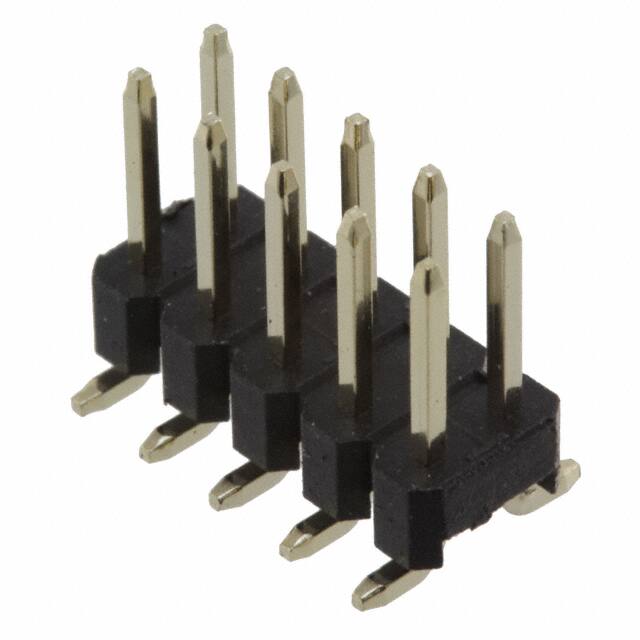

The 61031021121 is a 10-position dual-row header connector from Würth Elektronik's WR-PHD series. It has a 2.54mm pitch and row spacing, making it suitable for standard board-to-board and cable applications. The header features square male pins with gold contact finish over copper alloy, stamped construction, and an unshrouded design with push-pull fastening.
The connector is surface mountable with solder termination and includes a pick-and-place feature for automated assembly. The insulator is black polyamide (PA6T/Nylon 6T) with a height of 2.54mm. Contact length is 6.00mm. Electrical ratings include a maximum current of 3A and voltage of 250V. The part has a durability of 25 mating cycles.
This header is commonly used in general electronic equipment where a reliable interconnect is needed. It is not authorized for use in safety-critical or high-reliability applications without specific agreement, as noted by the manufacturer.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.05 | $2.05 |
| 10+ | $1.74 | $1.74 |
| 25+ | $1.45 | $1.45 |
| 50+ | $1.21 | $1.21 |
| 100+ | $1.10 | $1.10 |
| 300+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions.
2.54mm (0.100").
3A maximum.
250V.
Surface mount.
Gold.
2 rows.
