| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

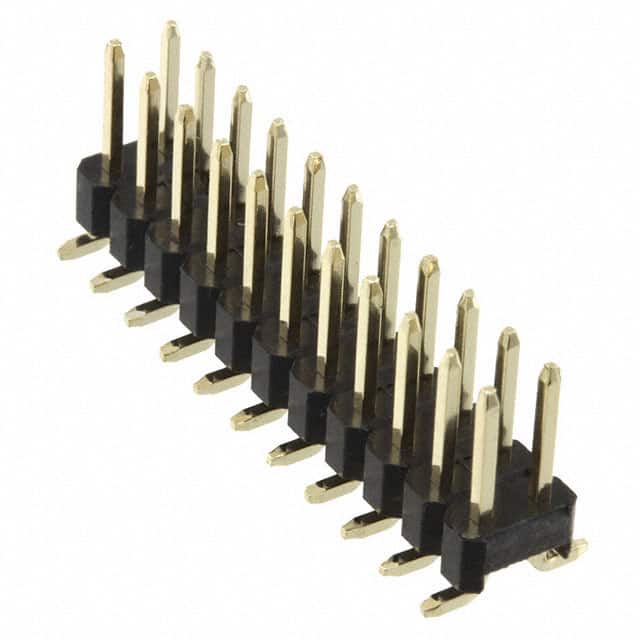

This Würth Elektronik 61002221121 is a 22-position dual row surface mount pin header with a 2.54mm pitch and 2.54mm row spacing. The connector uses square male pin contacts made from copper alloy with gold plating for reliable electrical performance. The black PA6T insulator offers a UL94 V-0 flammability rating.
Electrical ratings include a nominal current of 3A per contact with a 250V AC working voltage. Insulation resistance exceeds 1000 MOhm and contact resistance is 20 mOhm maximum, with a dielectric withstand voltage of 500V AC rated per minute. The part is rated for operating temperatures from -40°C to 125°C.
The connector is packaged in tube format and designed for JEDEC lead-free reflow soldering. It is intended for board-to-board and cable interconnect applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.24 | $4.24 |
| 10+ | $3.60 | $3.60 |
| 22+ | $3.00 | $3.00 |
| 44+ | $2.50 | $2.50 |
| 88+ | $2.28 | $2.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
22 positions arranged in a dual row configuration.
2.54mm (0.100") pitch with 2.54mm row spacing.
3 amperes per contact.
250V AC working voltage.
Surface mount (SMT) with solder termination.
-40°C to 125°C.
Yes, it is marked RoHS compliant and lead-free.
