| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 9 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accommodates a Fuse | |
| Accomodates a Fuse | |
| Allowable Operation Temperature | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Dielectric Strength | |
| Filter Type | |
| Halogen Free | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Mounting Type | |
| Number of Positions | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| Pin Temperature | |
| Protection Class | |
| Ratings IEC | |
| Ratings UL/CSA | |
| SVHC Present | |
| Termination | |
| Voltage Rating |

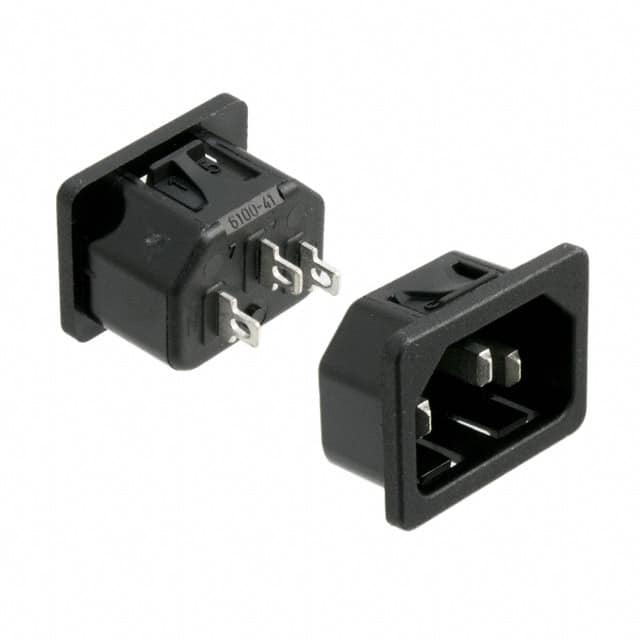

The Schurter 6100.4115 is a panel mount IEC 320-C14 appliance inlet/receptacle designed for commercial applications. It accepts male blades (C14 plug) and provides solder eyelet connections. Rated for 10A at 250VAC (IEC) and 15A at 250VAC (UL/CSA), it is suitable for protection class I equipment. The snap-in mounting allows easy front-side panel installation into a rectangular cutout of 27.50mm x 20.00mm, accommodating panel thicknesses from 1.0mm to 2.5mm (specifically 1.50mm). The black thermoplastic housing meets UL94 V-0 flammability rating. This unfiltered version is typically used where EMI filtering is not required. Operating temperature range is -25°C to 70°C, with an IP30 protection rating on the front side. Approvals include CCC, cULus, and ENEC.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.63 | $1.63 |
| 10+ | $1.39 | $1.39 |
| 25+ | $1.30 | $1.30 |
| 50+ | $1.24 | $1.24 |
| 100+ | $1.18 | $1.18 |
| 250+ | $1.10 | $1.10 |
| 500+ | $1.05 | $1.05 |
| 1,000+ | $1.00 | $1.00 |
| 2,500+ | $0.94 | $0.94 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector has 3 positions (Line, Neutral, Ground).
Rated 10 A at 250 VAC (IEC) and 15 A at 250 VAC (UL/CSA).
Rated 250 VAC.
Panel mount, snap-in from the front side.
No, this connector does not accommodate a fuse.
-25 °C to 70 °C.
Approved by CCC, cULus, and ENEC.
