| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
47 pcs
|
47 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accommodates a Fuse | |
| Accomodates a Fuse | |
| Allowable Operation Temperature | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Current Rating (Nominal @ IEC, 50 Hz) | |
| Current Rating (Nominal @ UL/CSA, 60 Hz) | |
| Features | |
| Filter Type | |
| Housing Material | |
| Ingress Protection | |
| Ingress Protection (@ Front side) | |
| Ingress Protection (@ With sealing kit) | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Screw Torque | |
| Mounting Type | |
| Number of Positions | |
| Panel Cutout Dimensions | |
| Panel Thickness (Maximum @ With sealing kit) | |
| Panel Thickness (Maximum @ Without sealing kit) | |
| Pin Temperature | |
| Protection Class | |
| Standards | |
| Termination | |
| Termination (@ Quick Connect) | |
| Termination (@ Solder) | |
| Termination Style | |
| Voltage Rating | |
| dielectric_strength (Minimum @ Between L-N, 1 min/50 Hz) | |
| dielectric_strength (Minimum @ Between L/N-PE, 1 min/50 Hz) |

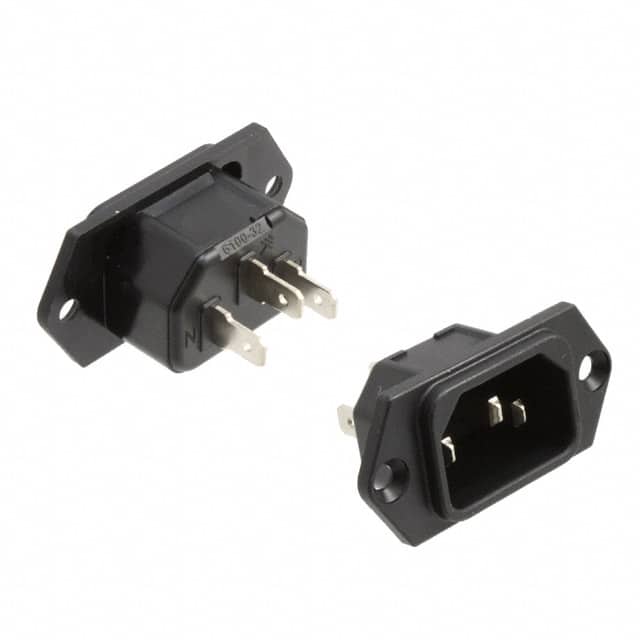

The Schurter 6100.3200 is an IEC 60320-1 C14 appliance inlet designed for panel mount applications. It accepts a maximum panel thickness of 8 mm (3 mm with sealing kit) and is secured with screw-on mounting from the front or rear side. The connector offers two termination options: solder terminals and quick-connect tabs (0.189" / 4.8 mm).
Electrically, the inlet is rated 10 A at 250 VAC (IEC, 50 Hz) and 15 A at 250 VAC (UL/CSA, 60 Hz). Dielectric strength exceeds 2 kVAC between line-neutral and between line/neutral and protective earth. The pin temperature is rated at 70 °C, with an allowable operating temperature range of -25 °C to 70 °C.
The housing is made of black thermoplastic with a UL94 V-0 flammability rating. The front side achieves IP40 ingress protection, which can be upgraded to IP54 with an optional sealing kit. This part is suitable for protection class I equipment and carries approvals from CCC, cULus, and ENEC.
10 A at 250 VAC (IEC, 50 Hz) and 15 A at 250 VAC (UL/CSA, 60 Hz).
250 VAC.
Panel mount with screw-on mounting from the front or rear side.
Solder terminals and quick-connect tabs (0.189" / 4.8 mm).
-25 °C to 70 °C.
IP40 on the front side; IP54 with the optional sealing kit.
RoHS3 compliant (unverified, treat as low confidence).
