| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 50 | On Request | On Request | On Request | On Request | On Request | |
|
27 pcs
|
27 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accommodates a Fuse | |
| Accomodates a Fuse | |
| Allowable Operation Temperature | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Dielectric Strength (Minimum @ Between L-N) | |
| Dielectric Strength (Minimum @ Between L/N-PE) | |
| Filter Type | |
| Glow Wire Test Compliance | |
| Halogen Free | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Mounting Type | |
| Number of Positions | |
| Package / Case | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| Pin Temperature | |
| Protection Class | |
| SVHC Present | |
| Termination | |
| Termination Style | |
| Voltage Rating | |
| Voltage Rating (Nominal @ UL, CSA) | |
| current_rating (Nominal @ IEC) | |
| current_rating (Nominal @ UL/CSA) | |
| voltage_rating (Nominal @ IEC) |

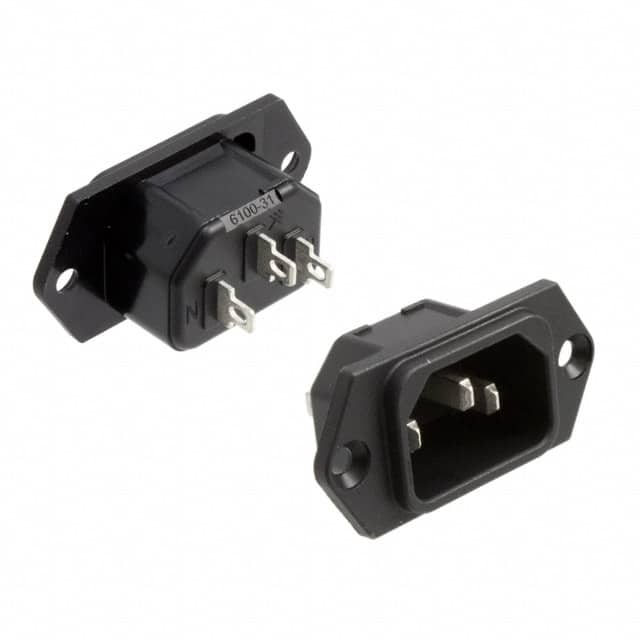

The Schurter 6100.3100 is an IEC 320-C14 appliance inlet receptacle from the 6100-3 series. It accepts a male plug and provides a panel-mount solution with screw-on mounting from the front or rear side, accepting panel thickness up to 8 mm (or 3 mm with the optional sealing kit). Termination is via solder eyelet or quick-connect terminals. The housing is black thermoplastic with UL94 V-0 flammability rating.
The inlet is rated 10 A / 250 VAC under IEC and 15 A / 250 VAC under UL/CSA. Dielectric strength exceeds 2 kVAC between L-N and between L/N-PE. Operating temperature range is -25 °C to 70 °C. Front side protection is IP40 (IP54 with optional sealing kit). Protection class I per IEC 61140. No fuse accommodation. Applicable standards include IEC 60320-1, UL 60320-1, and CSA C22.2 no. 60320-1. The part has approvals from CCC, cULus, and ENEC. It meets increased glow wire test requirements per IEC 60695-2-12 and -13.
Panel mount, screw-on (front or rear side).
10 A under IEC, 15 A under UL/CSA at 250 VAC.
No, it does not accommodate a fuse.
-25 °C to 70 °C.
IP40 on the front side (IP54 with optional sealing kit).
CCC, cULus, ENEC.
Black thermoplastic, UL94 V-0.
