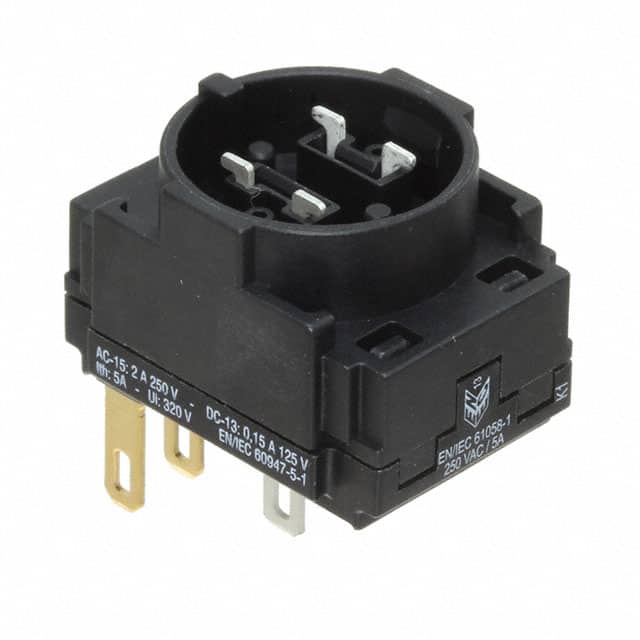

61-8520.22 The EAO 61-8520.22 is a DPST-NO contact block with a 5A @ 250VAC/DC rating. It features solder and quick connect termination.
Mfr Part #:

61-8520.22

Available from 1 distributors
Mfr Name: EAO
EAO
The EAO 61-8520.22 is a DPST-NO contact block with a 5A @ 250VAC/DC rating. It features solder and quick connect termination.
Stock on Request
$ Price Range: $0.75

61-8520.22 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
On Request
On Request
On Request On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

61-8520.22 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
(Select First, Then Apply Filters) Compatible Series
Circuit
Contact Rating @ Voltage
Requires
Storage Temperature
Tape & Reel
Termination Style
View Similar Products (0)

61-8520.22 Description

Short technical summary and product information.

The EAO 61-8520.22 is a contact block designed for use within the EAO Series 61 configurable switch system. This specific model features a DPST-NO (Double Pole Single Throw - Normally Open) circuit configuration.



It is rated for a maximum of 5 Amperes at 250 Volts AC or DC, making it suitable for various power switching applications. The termination style includes both solder and quick connect options with a 0.110" (2.8mm) terminal size, offering flexibility during installation.



This contact block is part of a modular series that allows for customization and ease of mounting. It is compatible with the EAO Series 61, providing a versatile solution for machinery, measurement and control engineering, and process engineering applications.

61-8520.22 Quick Information

Product Type: Contact Block
Series: 61
Canonical Name: EAO 61-8520.22 DPST-NO Contact Block
Subcategory: Configurable Switch Components

61-8520.22 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

61-8520.22 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

61-8520.22 Features

  • DPST-NO circuit configuration for switching.
  • Rated for 5A at 250VAC/DC voltage.
  • Solder and quick connect termination styles.
  • Part of Series 61 with modular design.
  • Suitable for various control and indicator applications.

61-8520.22 Applications

  • Used in machinery control panels.
  • Suitable for measurement and control engineering.
  • Ideal for process engineering applications.
  • Applicable in public transportation systems.
  • Used in laboratory instruments.

61-8520.22 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the circuit configuration of the EAO 61-8520.22?

The EAO 61-8520.22 features a DPST-NO circuit configuration.

What is the contact rating for the EAO 61-8520.22?

The contact rating is 5A at 250VAC/DC.

What termination styles are available for the EAO 61-8520.22?

It offers solder and quick connect termination styles with 0.110" (2.8mm) terminals.

Which series is the EAO 61-8520.22 compatible with?

It is compatible with the EAO Series 61.

What is the RoHS status of the EAO 61-8520.22?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The MSL is 1 Unlimited.

Is the EAO 61-8520.22 REACH unaffected?

Yes, the REACH status is REACH Unaffected.
