| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Maximum @ 42 VAC) | |
| Current Rating (Maximum @ ≤250 VAC) | |
| Ingress Protection | |
| Lens Material | |
| Lens Size | |
| Lens Style | |
| Marking Method | |
| Mounting Diameter | |
| Mounting Dimensions | |
| Panel Cutout Dimensions | |
| Panel Cutout Shape | |
| Termination Style | |
| Type | |
| Voltage Rating (Maximum @ 42 VAC) | |
| Voltage Rating (Maximum @ 5 A) |

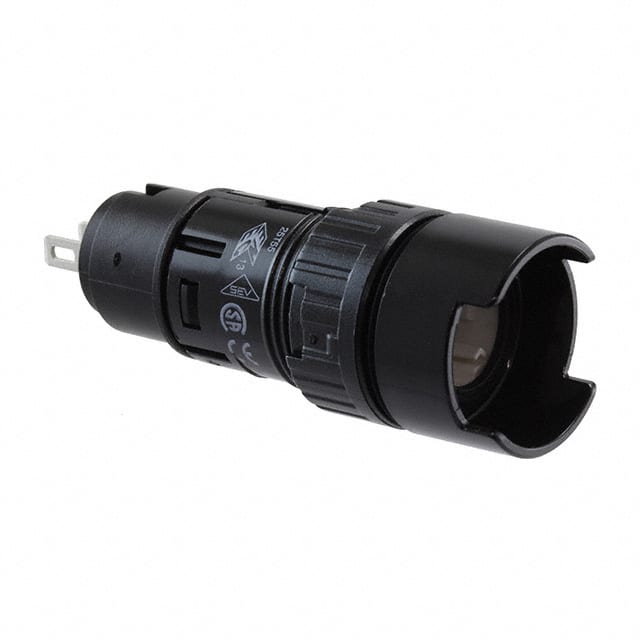

The EAO Series 61 is a comprehensive, intuitive, and versatile range of components. This specific model, the 61-0010.02, functions as an LED panel indicator. It features an 18mm diameter round lens with a flat top, providing clear visual signaling.
The indicator offers robust protection with an IP65 rating, making it suitable for environments where dust and water ingress are concerns. It is designed for panel mounting with a 16.2mm round cutout and utilizes solder lug terminals for secure electrical connections.
Key advantages of the Series 61 include a modern design, a wide range of switching elements, and ease of mounting. Typical application areas span machinery, measurement and control engineering, process engineering, public transportation, and laboratory instruments. The series is internationally recognized and approved, with various marking options available for customisation.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The EAO 61-0010.02 is an LED panel indicator.
The lens has an 18mm diameter and is round with a flat top.
The ingress protection rating is IP65.
A 16.2mm round panel cutout is required.
It uses solder lug termination.
It is rated for 42 VAC at 100 mA and up to 250 VAC at 5 A.
Yes, it is RoHS3 Compliant.
