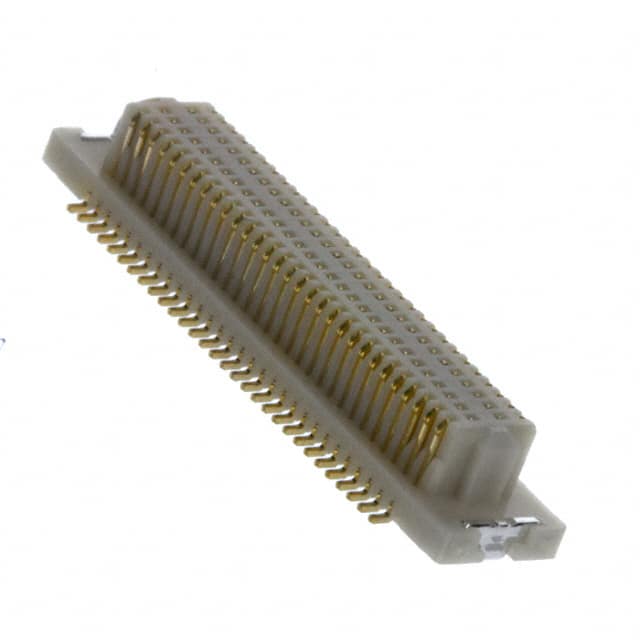

60R-JMDSS-G-1-TF(S)(LF)(SN) 60 position 0.5mm pitch surface mount receptacle from JST Manufacturing. Features gold contact finish, solder retention, and mated stacking heights of 4.5mm, 5mm, and 6mm.
Mfr Part #:

60R-JMDSS-G-1-TF(S)(LF)(SN)

Available from 1 distributors
Mfr Name: Jst Manufacturing
Jst Manufacturing
60 position 0.5mm pitch surface mount receptacle from JST Manufacturing. Features gold contact finish, solder retention, and mated stacking heights of 4.5mm, 5mm, and 6mm.
✓ Total Stock: 1,025 pcs

60R-JMDSS-G-1-TF(S)(LF)(SN) Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
1,025 pcs
On Request
1025 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

60R-JMDSS-G-1-TF(S)(LF)(SN) Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Features
Height Above Board
Lead Spacing
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
Termination Style
View Similar Products (0)

60R-JMDSS-G-1-TF(S)(LF)(SN) Description

Short technical summary and product information.

This is a 60-position, 2-row, 0.5mm pitch surface mount receptacle with center strip contacts from JST Manufacturing. It features a gold contact finish for reliable conductivity and corrosion resistance. The connector includes solder retention for secure mounting on the PCB. Mated stacking heights of 4.5mm, 5mm, and 6mm allow flexibility in board-to-board spacing. The height above board is 3.10mm. This connector is suitable for mezzanine or board-to-board applications requiring high density. The surface mount design facilitates automated assembly and reflow soldering processes.

60R-JMDSS-G-1-TF(S)(LF)(SN) Quick Information

Product Type: Board-to-Board Connector
Series: JMDSS
Canonical Name: JST Manufacturing 60R-JMDSS-G-1-TF(S)(LF)(SN) - 60 Position Receptacle, Center Strip Contacts, Surface Mount, Gold
Subcategory: Board-to-Board Connectors

60R-JMDSS-G-1-TF(S)(LF)(SN) Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

60R-JMDSS-G-1-TF(S)(LF)(SN) Features

  • 60 positions with 0.5mm pitch spacing.
  • Surface mount design for automated assembly.
  • Gold contact finish for reliable conductivity.
  • Solder retention for secure mounting.
  • Supports mated stacking heights of 4.5-6mm.

60R-JMDSS-G-1-TF(S)(LF)(SN) Applications

  • Used in mezzanine board-to-board connections.
  • Ideal for compact electronic devices.
  • Suitable for high-density interconnect applications.

60R-JMDSS-G-1-TF(S)(LF)(SN) FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this connector have?

60 positions.

What is the pitch of this connector?

0.5mm.

What is the mounting type?

Surface mount.

What is the contact finish?

Gold.

What are the mated stacking heights?

4.5mm, 5mm, and 6mm.

Does this connector have solder retention?

Yes, it features solder retention.

What is the height above board?

3.10mm.
