| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Duration | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

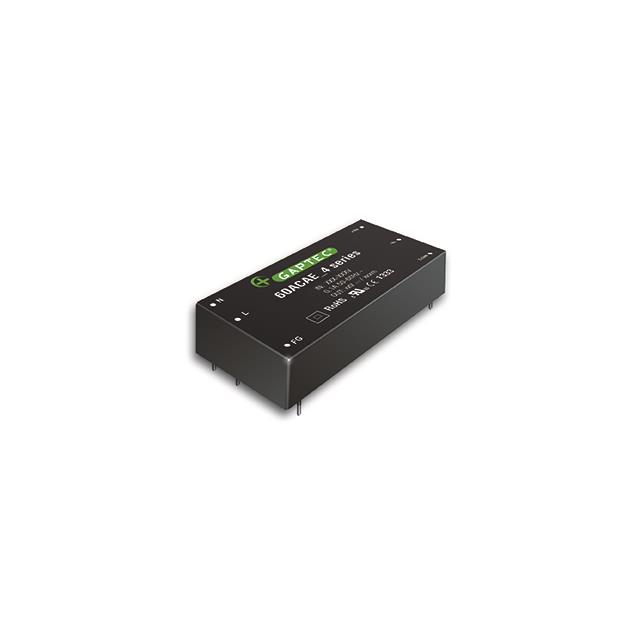

The GAPTEC Electronic 60ACBE_12S4 is an enclosed AC DC converter designed for industrial applications. It provides a single 12V output with a maximum current of 5A, delivering a total power of 60W. The converter features adjustable output and universal input, accepting a wide voltage range from 90 to 264 VAC or 100 to 370 VDC.
With an efficiency of 86%, the 60ACBE_12S4 operates reliably within an ambient temperature range of -40°C to 70°C, with derating. Its dimensions are 109.0mm x 58.5mm x 30.0mm, and it is designed for through-hole mounting.
This AC DC converter is suitable for ITE (Commercial) applications and complies with standard number 62368-1. It is packaged as a 6-DIP module.
90-264 VAC and 100-370 VDC.
6-DIP Module with through-hole mounting.
-40°C to 70°C with derating.
12V.
5A.
60W.
86%.
