| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Overall Length | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Wire Gauge |

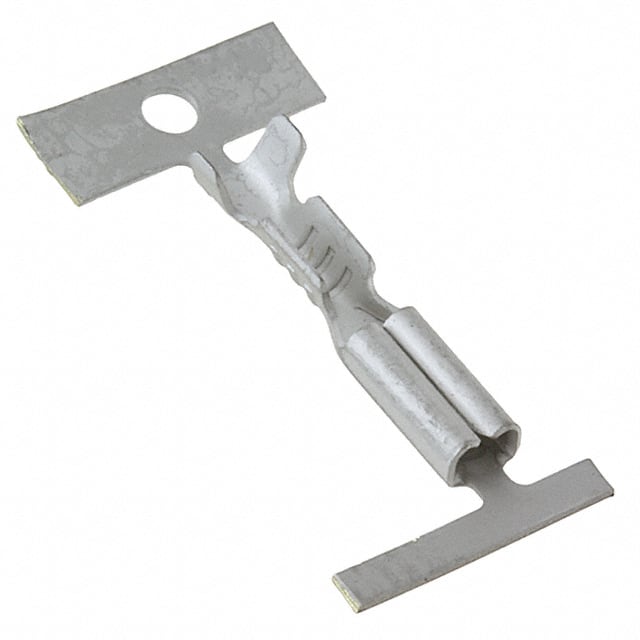

The 60900-4 is a female quick connect terminal from TE Connectivity, designed for reliable wire-to-wire connections. It accepts 20-24 AWG wires and features a 0.062" (1.57mm) tab width with a 0.031" (0.79mm) thickness and 0.187" (4.75mm) tab length. The terminal is non-insulated and uses a crimp termination method for secure attachment.
The contact is made of brass with a tin finish, providing good conductivity and corrosion resistance. The overall length is 11.73mm (0.462"). The mounting type is free hanging (in-line), allowing for flexible wire routing. This terminal is suitable for a variety of low-current applications in automotive, appliance, and industrial equipment.
Compliance data indicates RoHS3 compliance, REACH unaffected, and MSL 1 (unverified).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.12 | $0.12 |
| 10+ | $0.10 | $0.10 |
| 25+ | $0.09 | $0.09 |
| 50+ | $0.09 | $0.09 |
| 100+ | $0.08 | $0.08 |
| 250+ | $0.08 | $0.08 |
| 500+ | $0.08 | $0.08 |
| 1,000+ | $0.07 | $0.07 |
| 2,500+ | $0.07 | $0.07 |
| 10,000+ | $0.06 | $0.06 |
| 20,000+ | $0.06 | $0.06 |
| 30,000+ | $0.06 | $0.06 |
| 50,000+ | $0.05 | $0.05 |
| 70,000+ | $0.05 | $0.05 |
| 100,000+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Free hanging (in-line).
22 AWG and 24 AWG.
0.062 inches (1.57mm).
No, it is non-insulated.
Crimp.
Brass with a tin finish.
RoHS3 compliant per existing data.
