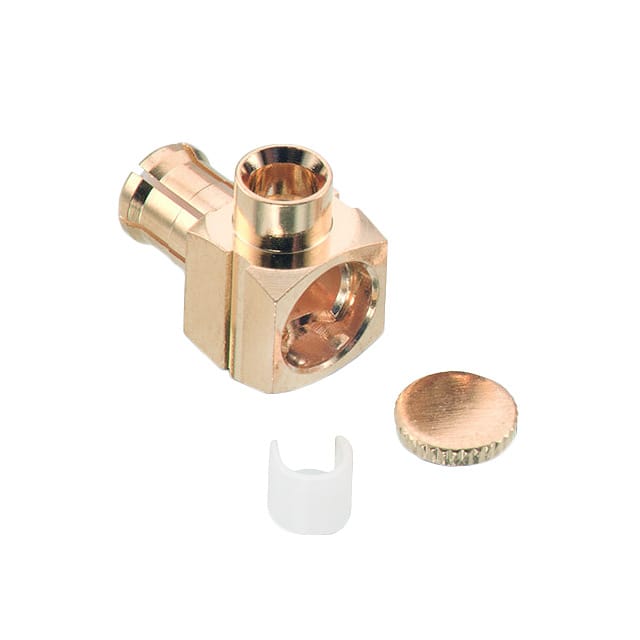

60639031210820 MCX right angle plug, solder termination, 50 Ohm impedance, for RG-405 semi-rigid cable. Rated to 6 GHz with low VSWR.
Mfr Part #:

60639031210820

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
MCX right angle plug, solder termination, 50 Ohm impedance, for RG-405 semi-rigid cable. Rated to 6 GHz with low VSWR.
✓ Total Stock: 50 pcs
$ Price Range: $5.35 - $8.92

60639031210820 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

60639031210820 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Approval Agency
Automotive Grade
Body Material
Cable Group
Center Contact Material
Center Contact Plating
Connector Style
Connector Type
Contact Termination
Fastening Type
Frequency
Gender
Halogen Free
Housing Color
Impedance
Insertion Loss
Insulation Resistance
Insulator Material
Medical Grade
Military Grade
Mounting Type
Number of Ports
Operating Temperature
Shield Termination
Tape & Reel
VSWR
Withstanding Voltage
View Similar Products (0)

60639031210820 Description

Short technical summary and product information.

The 60639031210820 is an MCX right angle plug connector with solder termination, designed for use with RG-405 (.085" semi-rigid) coaxial cable. It features a 50 Ohm impedance and operates from DC to 6 GHz. Electrical performance includes a maximum VSWR of 1.3 and insertion loss of 0.25 dB.



The connector employs a snap-on coupling mechanism for easy mating and is configured for free hanging (in-line) right angle mounting. Construction uses a PTFE insulator, brass body and center contact, and beryllium copper outer contact, all with gold plating over nickel. Operating temperature range is -55 to +155 °C. It complies with the IEC 61169-36 interface standard.



This product is intended for general electronic equipment and is not authorized for use in applications requiring higher safety standards such as military, medical, or aerospace without specific agreement from the manufacturer.

60639031210820 Quick Information

Product Type: Coaxial Connector Plug
Series: WR-MCX
Canonical Name: MCX Right Angle Plug, Solder Termination, 50 Ohm, for RG-405 Cable
Subcategory: MCX Connectors

60639031210820 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

60639031210820 Estimated Pricing

Qty Low High
1+ $8.92 $8.92
26+ $8.03 $8.03
50+ $7.49 $7.49
100+ $6.96 $6.96
250+ $6.42 $6.42
500+ $5.35 $5.35

Estimated market price range - modelled values for guidance only, not live distributor offers.

60639031210820 Features

  • 50 Ohm impedance for RF systems.
  • Snap-on coupling for quick connection.
  • Solder termination for secure attachment.
  • Gold plated contacts for low resistance.
  • Rated for 6 GHz operation.

60639031210820 Applications

  • Used in RF test equipment.
  • Suitable for telecommunications systems.
  • For interconnects in high-frequency circuits.
  • Works with RG-405 semi-rigid cable.

60639031210820 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the impedance of this connector?

The impedance is 50 Ohms.

What is the frequency range?

The frequency range is DC to 6 GHz.

What is the maximum VSWR?

The maximum VSWR is 1.3.

What is the insertion loss?

The maximum insertion loss is 0.25 dB.

What is the operating temperature range?

The operating temperature range is -55 to +155 °C.

What cable is this connector compatible with?

It is compatible with RG-405 (.085" semi-rigid) cable.

What is the mounting type?

The mounting type is free hanging (in-line), right angle.
