| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,000 pcs
|
8000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Base Material | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Termination | |
| Cut-off Tab Height | |
| Insulation Diameter | |
| Lead Style | |
| Overall Length | |
| Packaging Type | |
| Pin or Socket | |
| Plating Underplating | |
| Wire Gauge | |
| Wire Range |

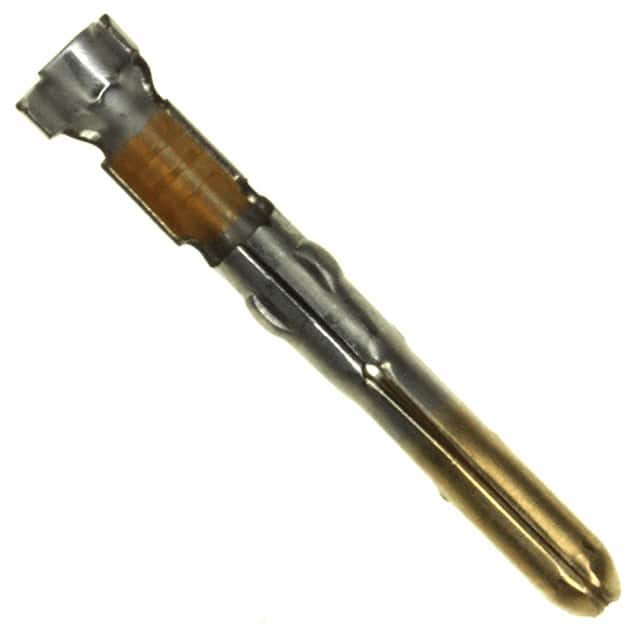

The TE Connectivity 60618-5 is a loose-piece pin contact from the Commercial MATE-N-LOK series, designed for 18-24 AWG wire (0.2-0.9 mm²). It features a crimp termination and a brass base material with a 0.76µm (30µin) gold finish over the mating area and wire barrel, with a 1.27µm (50µin) nickel underplating on the entire terminal. The contact accepts a maximum insulation diameter of 2.54 mm and has an overall length of 20.45 mm. It is supplied in individual form, not as a continuous strip, and is suitable for use in rectangular connector systems requiring reliable signal or power connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.86 | $2.86 |
| 10+ | $2.43 | $2.43 |
| 25+ | $2.28 | $2.28 |
| 50+ | $2.17 | $2.17 |
| 100+ | $2.06 | $2.06 |
| 250+ | $1.93 | $1.93 |
| 500+ | $1.84 | $1.84 |
| 1,000+ | $1.75 | $1.75 |
| 3,000+ | $1.62 | $1.62 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 60618-5 accepts 18-24 AWG wire (0.2-0.9 mm²).
The contact uses a crimp termination.
The contact has a gold finish with 0.76µm (30µin) thickness over a nickel underplating.
The overall length is 20.45 mm (0.805 in).
No, it is supplied in individual form, not as a continuous strip.
