| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
360 pcs
|
360 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| 1st Connector | |
| 2nd Connector | |
| CE | |
| Color | |
| Cord Type | |
| Current Rating (Amps) | |
| Dielectric Strength (Minimum @ Between L-N) | |
| Housing Material | |
| IP Protection | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Conductors | |
| Operating Temperature | |
| Pin Temperature | |
| Protection Class | |
| Shielding | |
| Style | |
| Terminal | |
| UKCA | |
| Voltage Rating | |
| Wire Gauge | |
| dielectric_strength (Minimum @ Between L/N-PE, 1 min/50 Hz) |

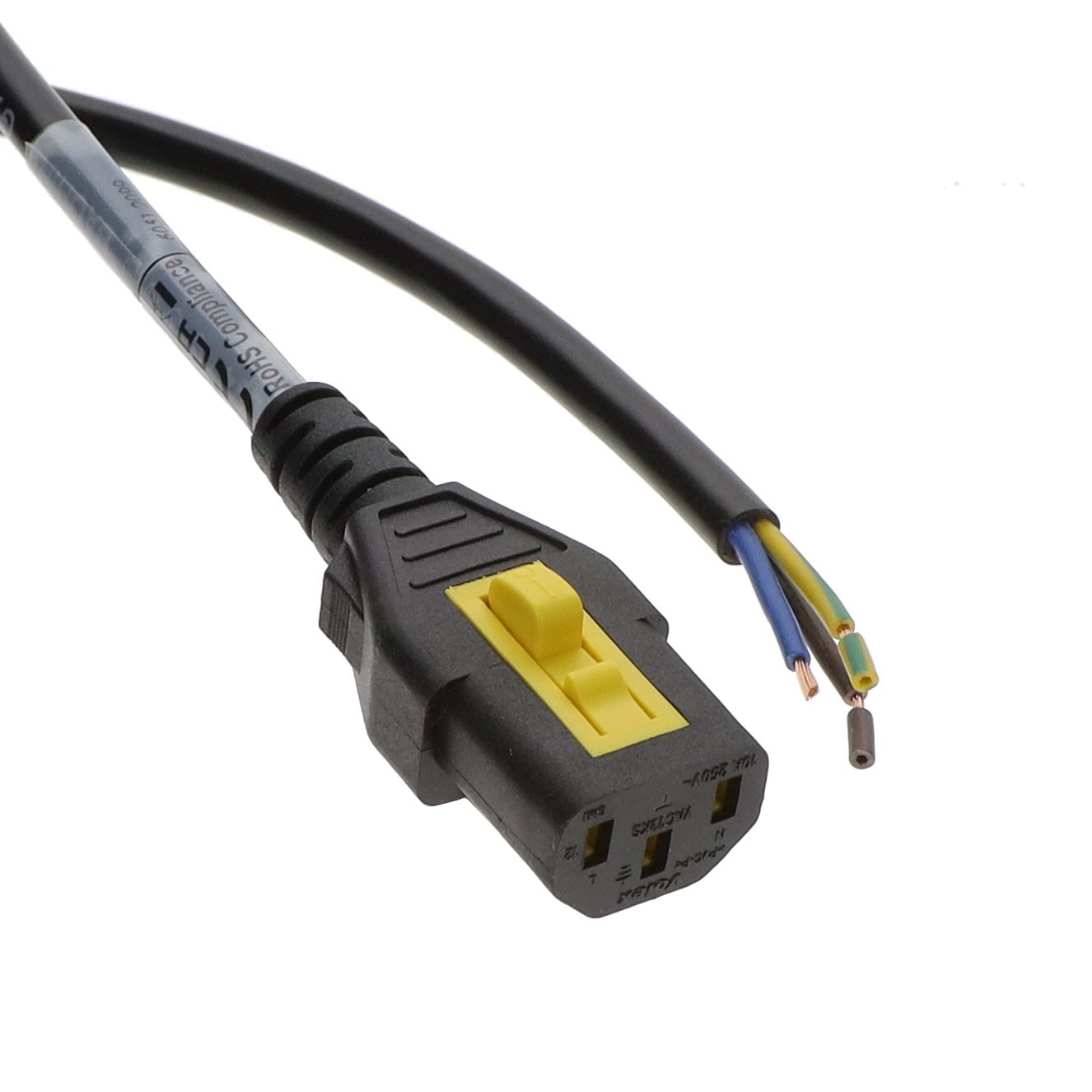

The Schurter 6051.2099 is a power supply cord with an IEC 320-C13 connector, designed for applications requiring a reliable interconnection to a power source. This cord features a female socket (C13) to stripped leads configuration, with a 5.00 meter (16.40 ft) length and a black PVC housing.
Electrical ratings include 10 A current at 250 VAC (IEC), with a 3-conductor 18 AWG wire gauge and cord type H05VV-F3G1.0. The cord is unshielded and rated for operation from -25°C to 70°C. Dielectric strength is verified at >2 kVDC between L-N and >2 kVAC between L/N-PE.
The connector is moulded, free-hanging, and features a V-Lock interlocking system. The front side provides IP20 protection per IEC 60529, and the product is designed for Protection Class I per IEC 61140.
| Qty | Low | High |
|---|---|---|
| 1+ | $27.78 | $27.78 |
| 10+ | $23.61 | $23.61 |
| 30+ | $21.85 | $21.85 |
| 60+ | $20.81 | $20.81 |
| 120+ | $19.81 | $19.81 |
| 270+ | $18.71 | $18.71 |
| 510+ | $17.89 | $17.89 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The voltage rating is 250 VAC per IEC standards, and 125 VAC per UL/CSA standards.
The current rating is 10 A at both IEC and UL/CSA ratings.
The allowable operation temperature is -25°C to 70°C.
RoHS status is listed as RoHS3 Compliant from the existing database, but this is unverified. CE and UKCA marks are verified per the datasheet.
The length is 5.00 meters (16.40 feet).
The wire gauge is 18 AWG with 3 conductors.
