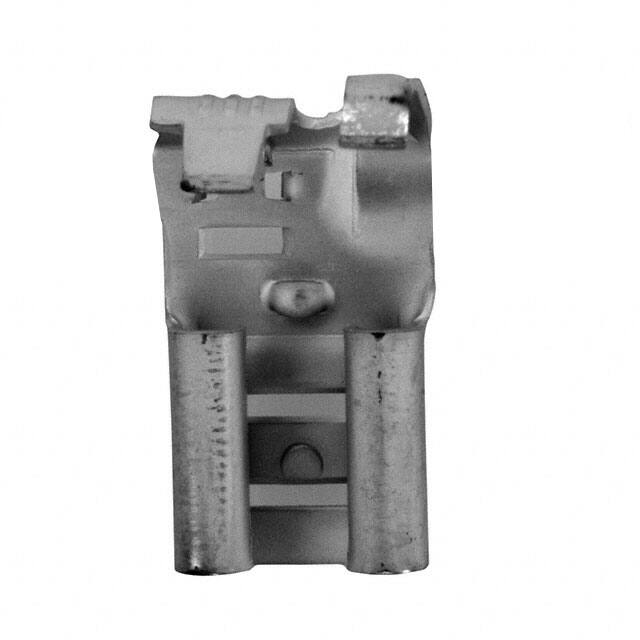

60274-2 The TE Connectivity 60274-2 is a 0.250" (6.35mm) Flag Quick Disconnect Receptacle for 12-18 AWG wires with crimp termination. It is non-insulated with phosphor bronze contacts and tin plating.
Mfr Part #:

60274-2

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
The TE Connectivity 60274-2 is a 0.250" (6.35mm) Flag Quick Disconnect Receptacle for 12-18 AWG wires with crimp termination. It is non-insulated with phosphor bronze contacts and tin plating.
✓ Total Stock: 3,550 pcs
$ Price Range: $0.16

60274-2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
3,550 pcs
On Request
3550 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

60274-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Finish
Contact Material
Gender
Insulation
Lead Style
Mounting Type
Tab Length
Tab Thickness
Tab Width
Terminal Type
Termination
Termination Style
Wire Gauge
View Similar Products (0)

60274-2 Description

Short technical summary and product information.

The TE Connectivity 60274-2 is a flag-style quick disconnect receptacle designed for wire-to-wire connections requiring frequent mating and unmating. With a 0.250" (6.35mm) tab width, it accepts standard male quick disconnect tabs and is crimp terminated for secure wire attachment. The connector supports 12-18 AWG wire sizes and features a non-insulated design, making it suitable for applications where insulation is not required. The contact is made of phosphor bronze with a tin finish for reliable conductivity and corrosion resistance. The right-angle flag configuration allows for space-efficient installation in tight layouts. This component is RoHS3 compliant and has an MSL of 1 (unlimited). It is commonly used in automotive, appliance, and industrial wiring harnesses for power and signal distribution.

60274-2 Quick Information

Product Type: Quick Disconnect Receptacle (Flag)
Canonical Name: TE Connectivity 60274-2 0.250" (6.35mm) Flag Quick Disconnect Receptacle, 12-18 AWG, Non-Insulated
Subcategory: Quick Connects, Quick Disconnect Connectors

60274-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

60274-2 Estimated Pricing

Qty Low High
12,000+ $0.16 $0.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

60274-2 Features

  • 0.250" (6.35mm) tab width for secure connection.
  • Accepts 12-18 AWG wire range.
  • Non-insulated flag design for right-angle mounting.
  • Phosphor bronze contact with tin plating.
  • Crimp termination for reliable wire attachment.

60274-2 Applications

  • Enables quick disconnect in wire-to-wire connections.
  • Right angle flag design for space-constrained layouts.
  • Accepts 0.250 inch male quick disconnect tabs.
  • Suitable for power distribution wiring harnesses.
  • Common in automotive and industrial control panels.

60274-2 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the mounting type of TE 60274-2?

Free Hanging (In-Line), Right Angle.

What wire gauge range does this terminal support?

12-18 AWG.

Is the terminal insulated?

No, it is non-insulated.

What is the contact material?

Phosphor Bronze.

What is the contact finish?

Tin.

What are the tab dimensions?

Tab width 0.250" (6.35mm), length 0.305" (7.75mm), thickness 0.032" (0.81mm).

Is the 60274-2 RoHS compliant?

Yes, RoHS3 compliant (unverified from datasheet).
