Mfr Part #:

6022BG

Name: 6022BG
Brand: Aavid, Thermal Division of Boyd Corporation
SKU: 6022BG

Description:

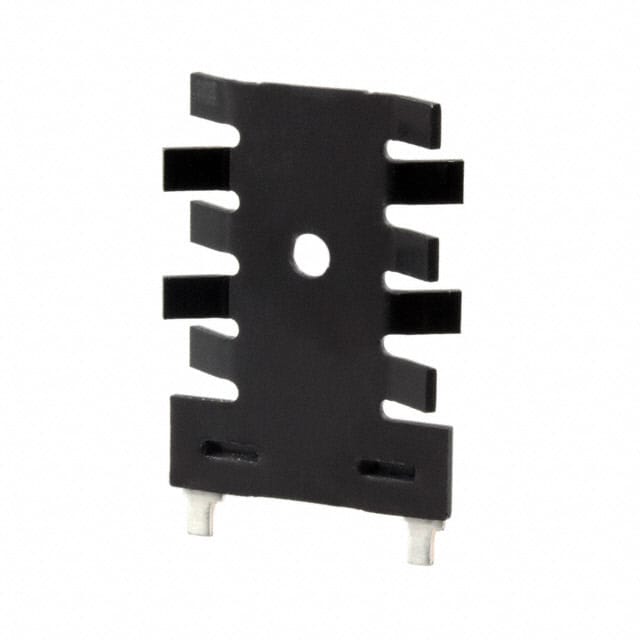

HEATSINK TO-220 STAGGERED FIN

Stock on Request

6022BG Description

Short technical summary and product information.

HEATSINK TO-220 STAGGERED FIN

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Heat Sinks
Manufacturer Name	Aavid, Thermal Division of Boyd Corporation
Attachment Method	Bolt On and PC Pin
Fin Height	0.250" (6.35mm)
Length	1.210" (30.73mm)
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	2.0W @ 40°C
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	6.00°C/W @ 400 LFM
Thermal Resistance @ Natural	16.70°C/W
Type	Board Level, Vertical
Width	0.875" (22.22mm)
