| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,400 pcs
|
7400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dimensions | |
| Features | |
| Lead Style | |
| Mounting Type | |
| Rated Voltage | |
| SVHC Present | |
| Temperature Coefficient | |
| Thickness (Max) |

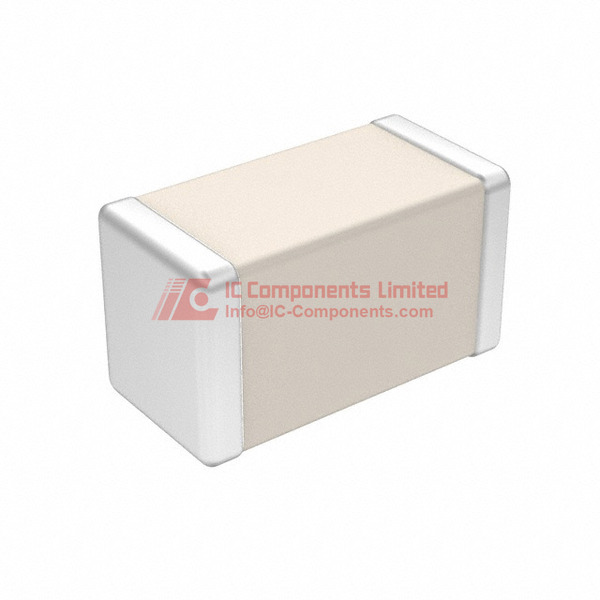

The American Technical Ceramics 600S5R6BT is a high-quality ceramic capacitor designed for demanding applications. It offers a capacitance of 5.6pF with a tight tolerance of ±0.1pF, making it suitable for precise circuit tuning.
With a rated voltage of 250V and a C0G/NP0 temperature coefficient, this capacitor ensures stable performance across a wide operating temperature range of -55°C to 125°C. Its features include High Q, Low Loss, and Ultra Low ESR, which are critical for RF, microwave, and high-frequency applications.
The component is housed in a compact 0603 (1608 Metric) package, designed for surface mounting (MLCC). Its dimensions are 0.063" L x 0.032" W (1.60mm x 0.81mm) with a maximum thickness of 0.89mm. The capacitor is supplied on tape and reel for automated assembly processes.
Ideal for bypass and decoupling functions, the 600S5R6BT is a reliable choice for engineers working with advanced electronic systems requiring superior performance and stability.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.10 | $0.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance is 5.6 pF with a tolerance of ±0.1 pF.
The rated voltage is 250V DC.
C0G/NP0, indicating a stable capacitance over temperature with minimal variation.
0603 (1608 Metric) surface mount package.
-55°C to 125°C.
Surface mount (MLCC).
High Q, low loss, and ultra low ESR.
