| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Size, Connector Layout | |
| Termination |

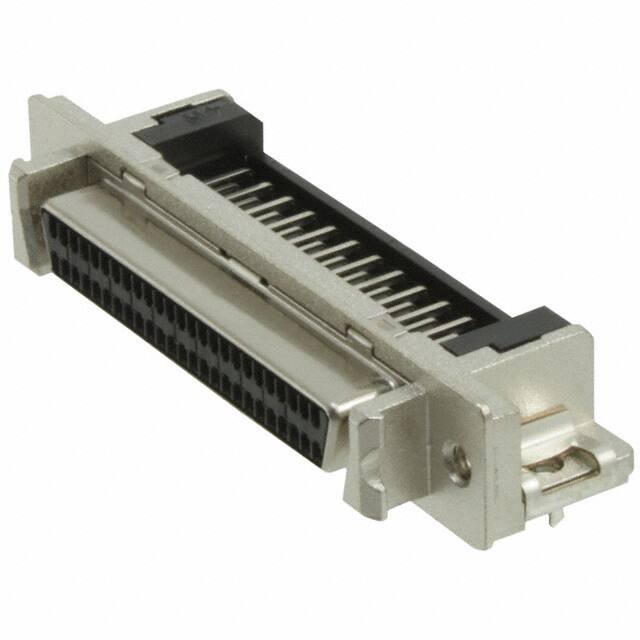

The Harting 60010505140 is a 50-position D-Sub receptacle connector designed for reliable signal interconnection. It employs female socket contacts and is configured with a D-Type shell style featuring a 0.050 inch pitch by 0.100 inch row-to-row layout.
The connector is mounted via through hole right angle termination, making it suitable for parallel board-to-cable or panel-mount applications where space constraints require a right-angle exit. The termination method is solder, providing a robust mechanical and electrical connection.
Features include a board lock for secure attachment to the PCB and a flange feature with housing/shell (M2.5) and latchblocks for additional mating stability. The backset spacing is 0.185 inches (4.70 mm). Electrical rating is 1 A per contact for signal-level currents.
The connector has 50 positions with female socket contacts arranged in 2 rows.
It uses through hole right angle mounting with solder termination.
The current rating is 1 A per contact (signal type).
It includes a board lock feature and a flange with housing/shell (M2.5) and latchblocks.
The connector is D-Type with a shell layout of 0.050 inch pitch by 0.100 inch row to row.
The backset spacing is 0.185 inches (4.70 mm).
