| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24,000 pcs
|
24000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Failure Rate | |
| Gender | |
| Insulation | |
| Insulation Type | |
| Lead Style | |
| Length | |
| Length (Maximum) | |
| Mounting Type | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Wire Diameter Range | |
| Wire Gauge |

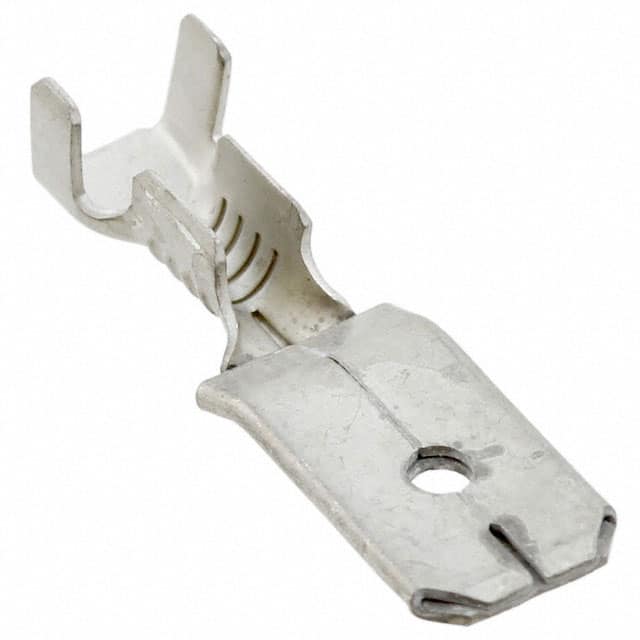

The TE Connectivity 60006-2 is a non-insulated quick connect tab from the FASTON .250 series. It features a male gender with a tab width of 0.250" (6.35 mm) and a tab thickness of 0.032" (0.81 mm). The contact is made of brass with a tin finish, suitable for wire gauges 14-18 AWG (wire diameter range 0.8 - 2.0 mm).
The terminal uses a crimp termination and is designed for free hanging (in-line) mounting. Its overall length is 21.34 mm (0.840") with a maximum length of 21.33 mm. The part is marked as RoHS3 compliant and REACH unaffected, though this compliance data is unverified and should be treated as low confidence.
This quick connect tab is commonly used in power and signal applications where a reliable, separable connection is required. The non-insulated design allows for flexibility in custom insulation or high-temperature environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.65 | $0.65 |
| 10+ | $0.55 | $0.55 |
| 25+ | $0.52 | $0.52 |
| 50+ | $0.50 | $0.50 |
| 100+ | $0.47 | $0.47 |
| 250+ | $0.44 | $0.44 |
| 500+ | $0.42 | $0.42 |
| 1,000+ | $0.40 | $0.40 |
| 2,500+ | $0.38 | $0.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 60006-2 accepts 14-18 AWG wire (0.8 - 2.0 mm diameter).
Tab width is 0.250" (6.35 mm) and tab thickness is 0.032" (0.81 mm).
No, the 60006-2 is a non-insulated terminal.
It uses crimp termination.
The overall length is 21.34 mm (0.840"), with a maximum length of 21.33 mm.
