| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Rated Current | |
| Rated Voltage | |
| Relay Type | |
| Release Time | |
| Switching Voltage | |
| Termination Style |

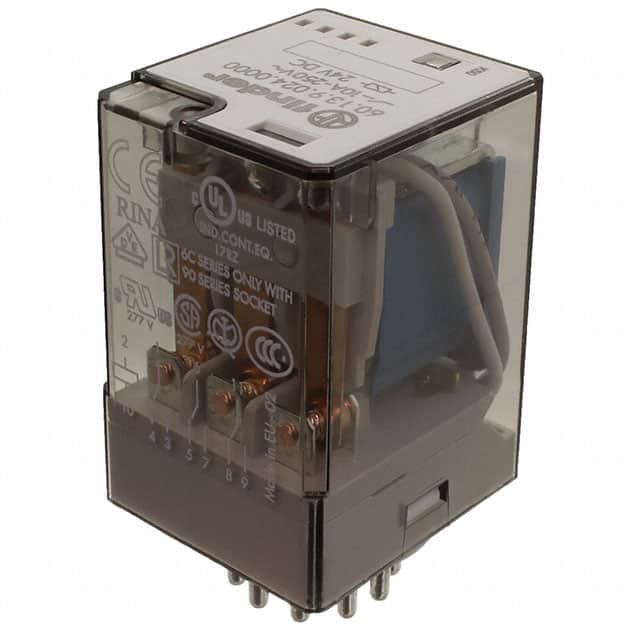

The Finder 60.13.9.024.0000 is a general purpose relay from the 60 SERIES, designed for reliable switching in various applications. It features 3 pole, double throw (3PDT) changeover contacts, capable of handling a rated current of 10A and a maximum switching voltage of 400VAC.
The relay is equipped with Silver Nickel (AgNi) contact material, known for its durability and performance in switching applications. The coil operates on a nominal 24VDC with a coil current of 53.9 mA. It requires a minimum operate voltage of 19.2 VDC and must release at or below 4.8 VDC. The operate time is 11 ms and the release time is 4 ms.
Designed for convenience, this relay features a socketable mounting type with an 11-pin plug-in termination style. It is built to withstand an operating temperature range of -40°C to 70°C and offers environmental protection rated as RT I. The mechanical life is rated for 20 million cycles (AC) and 50 million cycles (DC), with an electrical life of 200,000 cycles at rated load AC1.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Finder 60.13.9.024.0000 relay has a 3PDT (3 Form C) contact configuration.
The relay is rated for a maximum switching current of 10A under AC1 conditions.
The coil voltage for this relay is 24VDC.
The operating temperature range is -40°C to 70°C.
This relay uses a socketable mounting type.
The contact material is Silver Nickel (AgNi).
